Name: AC Hydraulic Telescopic Transmission Jack - Anthony Zhan Autos
Availability: InStock

AC Hydraulic Transmission Jack is pedal operated, allowing mechanics get more work done at a faster pace. Designed with optimum safety in mind; feature such as hand operated dead man’s release and/or a built-in safety overload valve. Model VL6, VL10, and VLT12 are manufactured with a galvanized support saddle and base frame.

Features:

Warranty – 10 Year Limited / 3 Years Unlimited.
Pedal operated pump leaving both hands free for working
Precise adjustment for positioning of the transmission
Hand operated dead man’s release for optimum safety whilst lowering
Galvanised support saddle and base frame
Built-in safety overload valve
Sturdy swivel casters for optimum stability and maneuverability
Hard chromium plated piston rod and pump piston for long life.

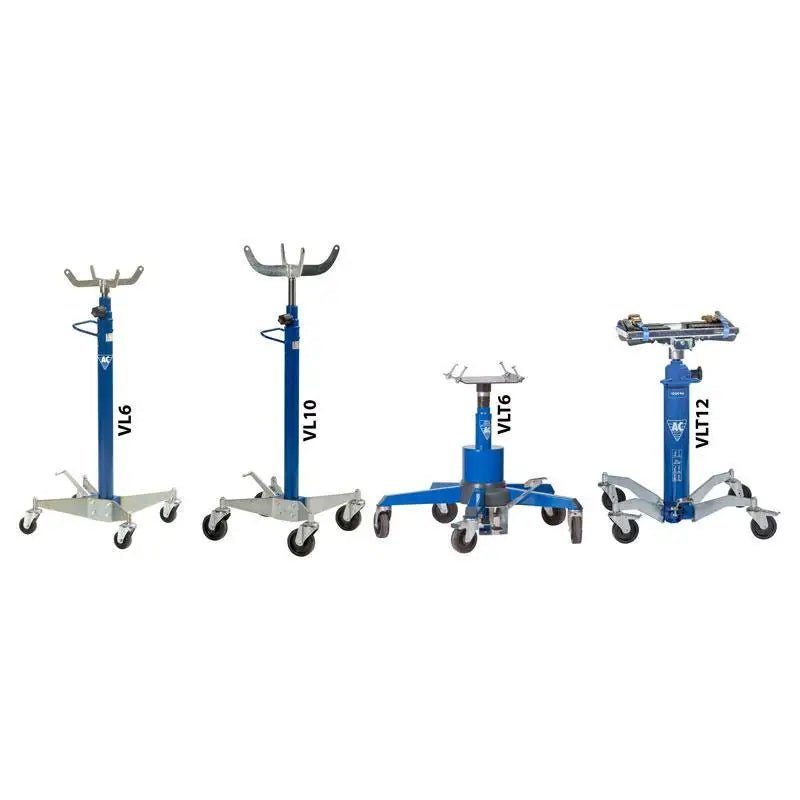

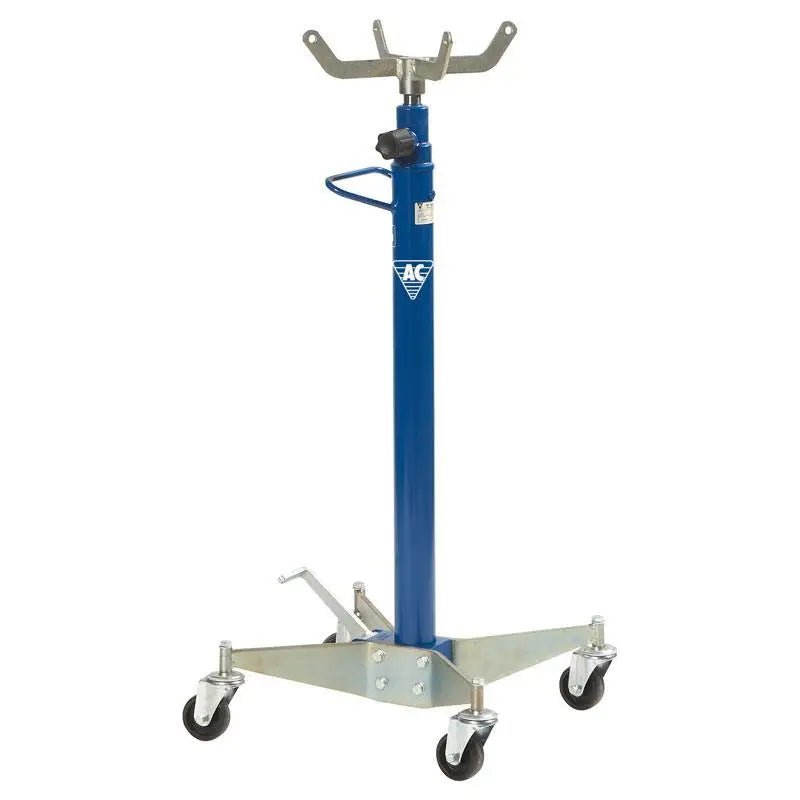

AC-VL6
Capacity: 0.65 Ton
Stroke: –
Min. Height: 44.49in
Max Height: 77.36in
Air Supply: –
Weight: 73 lbs
Width: 20.87in

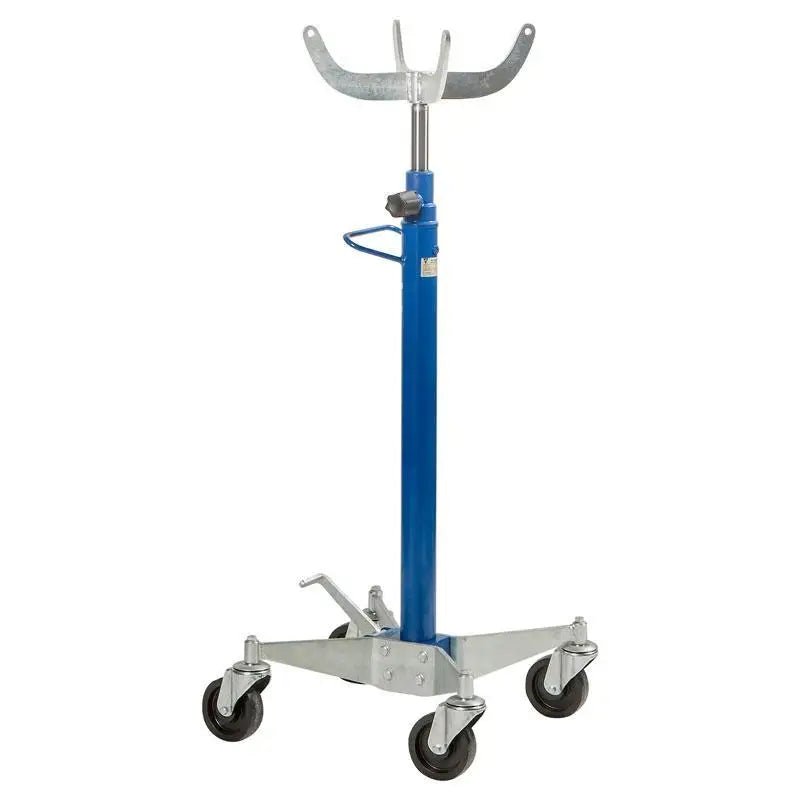

AC-VL10
Capacity: 1.1 Ton
Stroke: –
Min. Height: 46.06in
Max Height: 78.74in
Air Supply: –
Weight: 88 lbs
Width: 21.65in

AC-VLT6
Capacity: 0.65 Ton
Stroke: 47.05in
Min. Height: 28.35in
Max Height: 75.39in
Air Supply: 8.5-12 bar
Weight: 111 lbs
Width: 37.4in

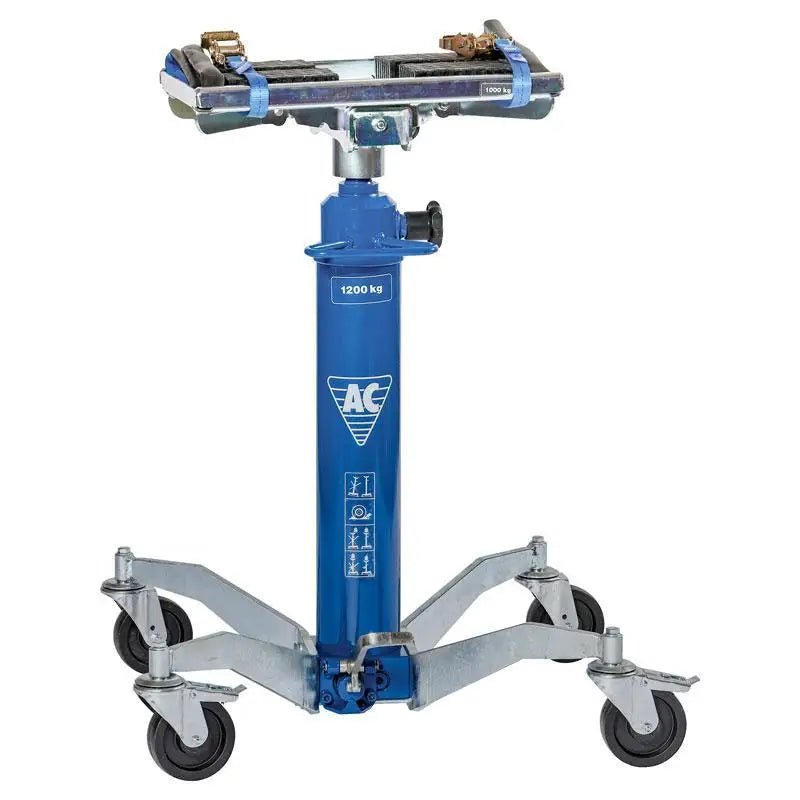

AC-VLT12
Capacity: 1.3 Ton
Stroke: –
Min. Height: 35.63in
Max Height: 75.59in
Air Supply: –
Weight: 150 lbs
Width: 28.35in

Application:

Mounting of springs
Fuel tanks
Exhaust pipes
Etc…

Capacity (Ton/Lbs)

.65T / 1300, 1.1T / 2200, 1.3T / 2600

Min/Max Height

28.35" / 75.39", 35.63" / 75.59", 44.49" / 77.36", 46.06" / 78.74"
