Buy BelAire 3312D4 2 x 5 HP, 460V, 3Ph, 120 Gal Electric Duplex Compressor

BelAire 3312D4 2 x 5 HP

BelAire 3312D4 460V, 3 PH Electric Duplex Air Compressor

GREAT PERFORMANCE AND VALUE
The BelAire duplex compressors are available up to 20 HP and can deliver up to 50.50 acfm on single phase power. BelAire duplex compressors feature two pumps and motors, along with an alternator which ensures optimal performance. BelAire Two Stage compressors come with a full 2 Year Warranty (including valves).

Features:

• Alternator
• Magnetic Motor Starter
• Start-Stop Dual Pressure Switch Control
• 1” Tank Discharge Valve
• Fully Enclosed Belt Guard
• ASME Tank and Safety Valves

Specifications:

• Model | 3312D4
• Part Number | 8090254759
• HP | 2 x 5
• Voltage/Phase | 460
• CFM @ 100PSI | 37.2
• CFM @ 175PSI | 33.2
• Tank | 120H
• Max Pressure | 175
• Shipping Weight | 778 lbs
• Dimensions | 77″l x 27″w x 56″h

PLEASE NOTE, IMPORTANT INFORMATION:

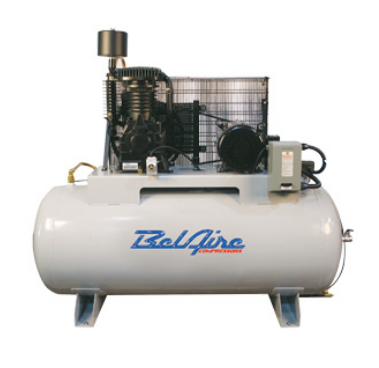

• *** IMAGE SHOWN IS OF MODEL 3112DL AND IS FOR REPRESENTATION ONLY, ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN ***
• ASSEMBLED IN THE USA
