Challenger LE12-3S HD Symmetric 2-Post Lift w/ 3-Stage Arm (12,000 lbs)

Price range: $10,221.00 through $11,787.00

Challenger LE12-3S HD Symmetric 2-Post Lift w/ 3-Stage Arm (12,000 lbs)

Extension, color
Choose an option / Choose an option
Challenger LE12-3S HD Symmetric 2-Post Lift w/ 3-Stage Arm (12,000 lbs)
Add to cart
Buy Now

The Challenger LE12-3S sets a new standard for reliability and versatility in professional service bays. Built on the proven LE12 platform, this updated model features 3-stage front and rear arms for greater reach and vehicle coverage — from compact SUVs to heavy-duty trucks up to 12,000 lbs. Designed for maximum headroom and durability, the LE12-3S includes adjustable column height, padded overhead shutoff, and premium plated components for long-term performance.


Features:

  • 12,000 lb. lifting capacity handles full-size trucks, vans, and fleet vehicles
  • Upgraded 3-stage front and rear arms provide enhanced reach and flexibility over the previous 2-stage design
  • Symmetric lifting configuration ensures balance and even weight distribution
  • Adjustable column height allows easy installation in varied ceiling heights
  • Single-point mechanical lock release for quick, safe lowering from both columns simultaneously
  • Heavy-duty polyurethane screw pads with included 3-inch and 6-inch stack adapters accommodate all recommended lifting points
  • Optional 2′ column height extensions (Part #E12EH2) for taller vehicles; includes hose and cable extension kits
  • Padded overhead shut-off system prevents accidental vehicle contact
  • Powder-coated finish resists corrosion and shop wear
  • Plated arm restraints and pins for long-lasting durability
  • Integrated rubber door guards protect vehicle panels from dings and scratches
  • ALI/ETL certified for safety and compliance in professional facilities

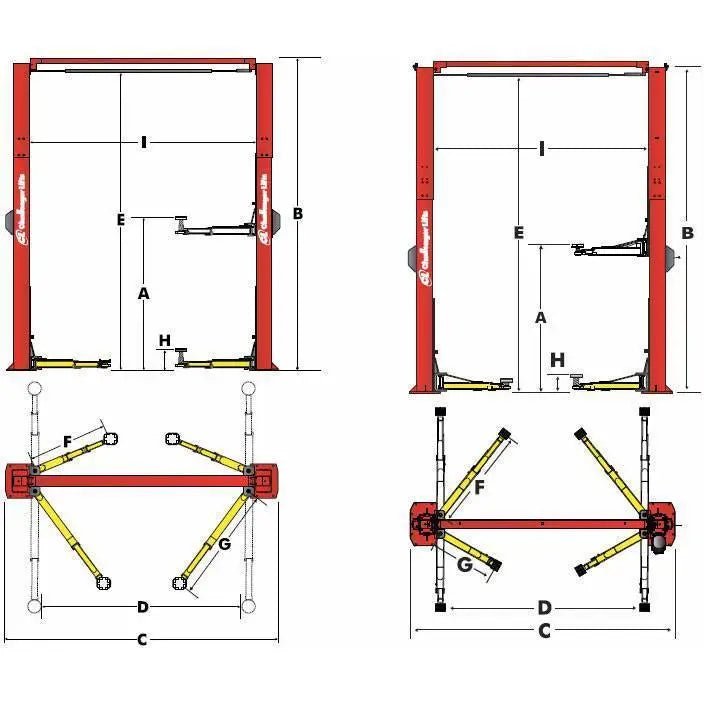

Specs:

Model Number: LE12-3S
Lifting Capacity: 12,000 lbs
Arm Type: 3-Stage Front / 3-Stage Rear
Lifting Configuration: Symmetric
Rise Height: 77.75 in
Overall Height: 166 in / 175 in (with extension)
2ft Height Extension Available: Yes (Part #E12EH2)
Overall Width: 139.75 in
Drive-Thru Clearance: 103 in
Floor to Overhead Switch: 159.5 in / 168.5 in
Minimum Arm Reach: 27.5 in
Maximum Arm Reach: 54.5 in
Screw Pad Height Range: 5.25 – 6.75 in
Inside Columns: 115 in
Required Ceiling Height: 167 in / 176 in
Motor / Voltage: 2 HP, 208-230V
Speed of Rise: 61 seconds
Certification: ALI / ETL
Colors Available: Red or Blue

Ref No.
E12
LE12


Includes:

4 x 3in Stack Extensions
2 x 6in Stack Extensions
2 x Organizer Racks with hardware
