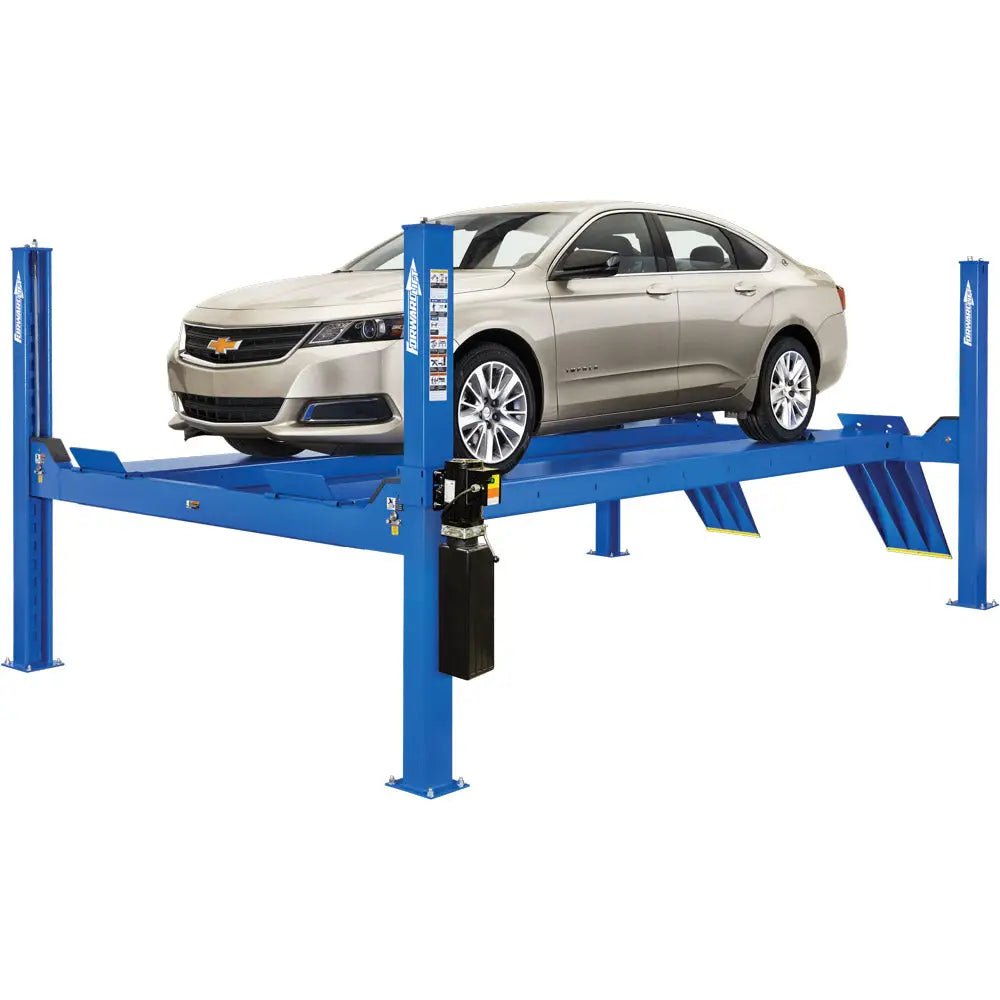

Forward Lift CR14 14K Four-Post Lift, ALI Cert.

Price range: $8,294.00 through $10,401.00

Forward Lift CR14 14K Four-Post Lift, ALI Cert.

Model, color
Choose an option / Choose an option
Forward Lift CR14 14K Four-Post Lift, ALI Cert.
Add to cart
Buy Now

The CR14 Lifts are designed to meet the service needs of today’s cars, vans, and trucks with 14,000 lbs. capacity!

Taller column design adds a 79″ rise height providing techs with better vehicle service access. This, coupled with the multi-position lock components, keeps your shop flexible. A new, improved heavy-duty, high-performance cable and sheaves system conveniently concealed under the runway, this heavy-duty system allows for greater capacity and durability. The cable and sheaves system is tucked under the lift but remains accessible for quick inspections yet doesn’t pose a snagging issue while working. A durable powder coat finish ensures your lift will continue to look good for years of service. Self-chocking approach ramps engage when the lift is raised – protective strips on ramps prevent floor gouging. All Forward products are proof load tested to 1½ times rated capacity! The combination of premium-quality products and service provides you with the best value – while not compromising safety, functionality, or durability.


Features:

  • Two model lengths are available
  • 78 – 3/4in rising height provides better vehicle service access
  • Heavy-duty, high-performance cable and sheaves system
  • Easy to use single point lift operation with one button air operated lock release
  • Multi-position lock components allow the lift to be level at any lock position
  • Self-chocking 41in approach ramps with protective strips
  • Durable powder coat finish

Specs:

Capacity: 14,000 lbs. (6350kg)
Rise: 78-3/4in (2000mm)
Overall width: 131-3/4in (3346mm)
Width Inside Columns: 116-1/4in (2953mm)
Overall height: 90-1/2in (2281mm)
Runway width: 20in (508mm)
Runway Height: 7in (178mm)
Rise Time: 72 seconds
Motor: 2HP

CR14N201Y (Standard)
Maximum Wheelbase: 182-1/2in (4635mm)
Overall length: 250in (6350mm)
Length between Columns: 195-1/4in (4959mm)
Width Between Runways: 43in (1092mm)
Minimum Bay Size: 15ft x 26ft (4572mm x 7925mm)

CR14N202Y (Extended Lenght)
Maximum Wheelbase: 215in (5461mm)
Overall length: 283in (7188mm)
Length between Columns: 228-1/4in (5798mm)
Width Between Runways: 46in (1168mm)
Minimum Bay Size: 15ft x 28ft (4572mm x 8534mm)


Application:

Independent repair shops
Car dealerships
Bodyshops
Home enthusiasts
Heavy-duty truck facilities
