Sale

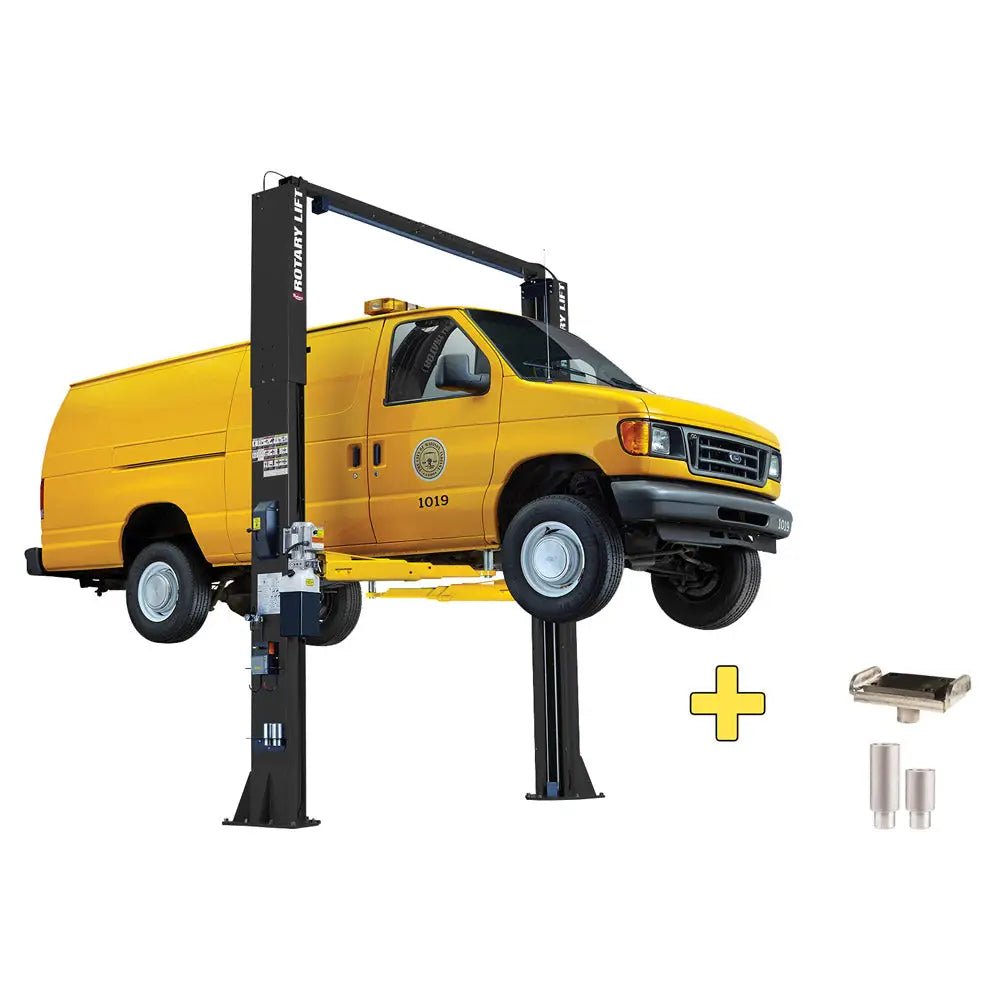

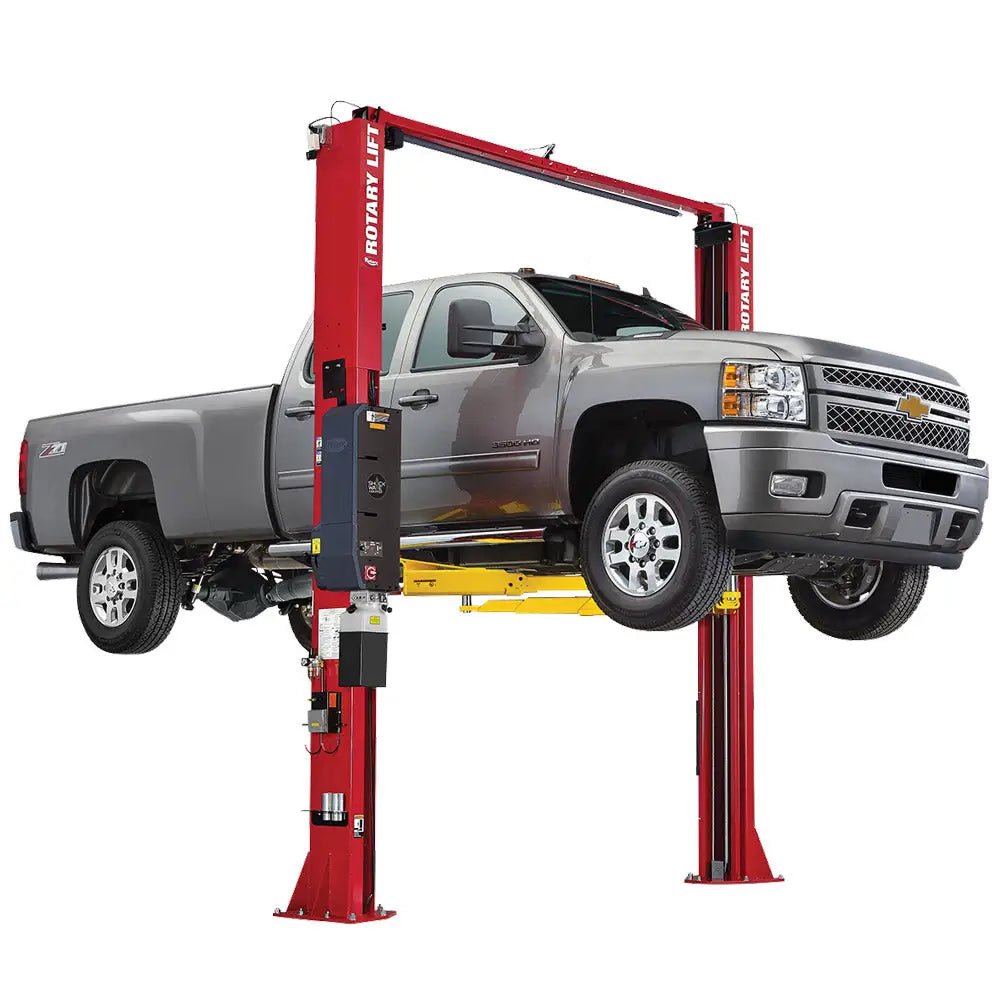

Rotary SPO12-WIDE 12K Two-Post Extra-Wide Symmetric Lift

Current price is: $13,695.00. Original price was: $13,752.00.

Rotary SPO12-WIDE 12K Two-Post Extra-Wide Symmetric Lift

color
Choose an option
Rotary SPO12-WIDE 12K Two-Post Extra-Wide Symmetric Lift
Add to cart
Buy Now

The Rotary SPO12-WIDE is engineered for shops that need maximum clearance, superior under-vehicle access, and the strength to handle today’s largest trucks, vans, and EV platforms. With an expanded 119-inch drive-thru width and 131-inch between the columns, this wide-stance version of the industry-proven SPO12 gives technicians more room to work while accommodating vehicles that simply won’t fit on standard lifts.

Built with Rotary’s legendary durability, 3-stage arms, and screw-up truck adapters, the SPO12-WIDE delivers the versatility and reliability professional shops demand,whether servicing fleets, commercial vehicles, lifted pickups, or battery-electric vehicles.

Why Choose the SPO12-WIDE?
If your shop works on full-size pickups, cargo vans, utility trucks, or EVs, the Rotary SPO12-WIDE gives you the room, stability, and lifting power those vehicles require,without compromising accessibility or technician efficiency.


Features:

  • Extra-Wide Drive-Thru Clearance: 119 3/8-inch drive-thru width,17-inch wider than a standard SPO12. Ideal for full-size trucks, work vans, and wide-body vehicles. Makes positioning vehicles faster, easier, and safer
  • Expanded Under-Vehicle Working Space: 131 7/8-inch between columns for greater technician access. Reduces obstructions when servicing EV battery packs, transmissions, exhaust systems, and more
  • Heavy-Duty 12,000 lb Capacity: Designed for commercial fleets, diesel trucks, cargo vans, and large SUVs. Symmetric column layout keeps vehicles balanced during lifting

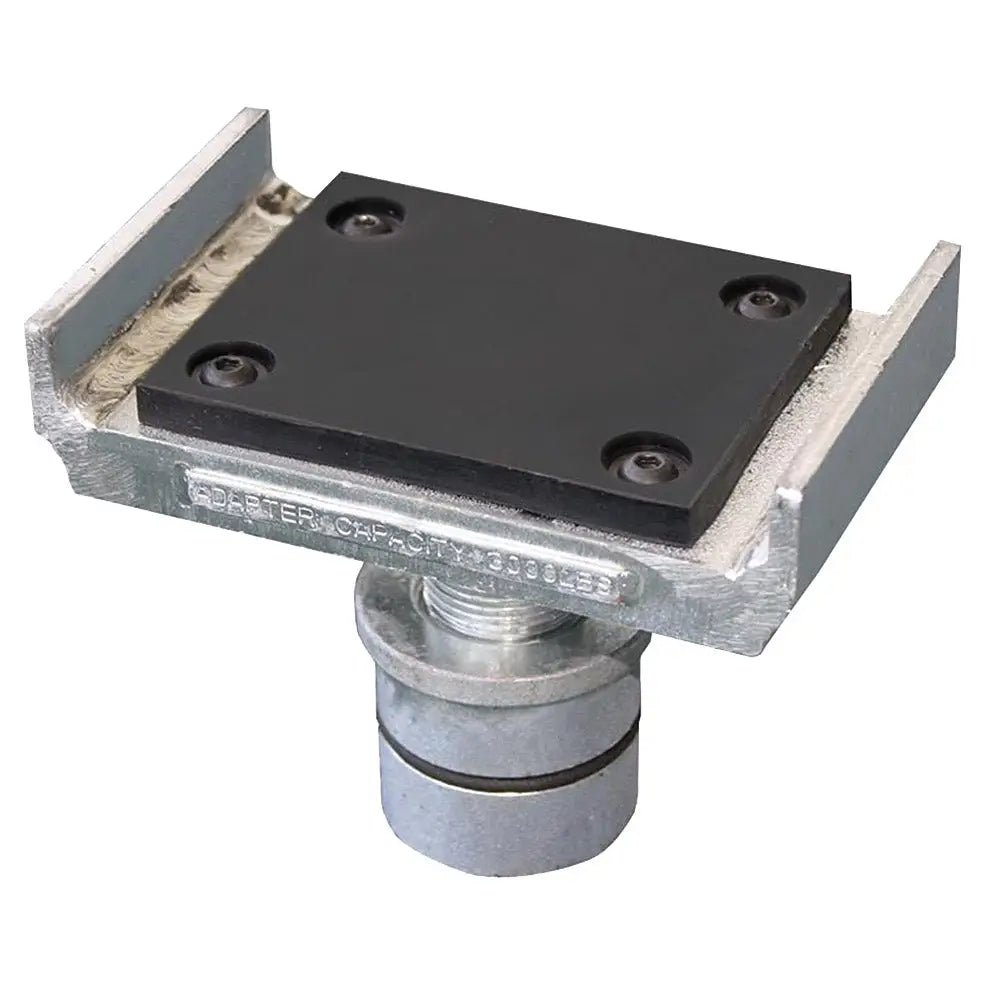

  • Premium Rotary Quality: Three-stage front and rear arms for maximum reach. Screw-up truck adapters with included stack adapters. Durable “Double-S” column design. ALI Gold Certified for safety and performance

Specs:

Capacity: 12,000 lb
Drive-Thru Clearance: 119 3/8in
Inside Column Width: 131 7/8in
Overall Width: 12ft 10-5/8in
Overall Height: 13ft 11-1/2in
*Rise Height: 75 3/4in – 78 1/8in
Arm Reach: 27.5in-59in (front & rear)
Power: 2 HP, 208-230V, single-phase
Minimum Ceiling Height: 14ft 1/2in

(*) The rise is typically measured from the top of the arm pad when it is on the ground to the same location at full height. However, Rotary does it differently;  the rise is the actual height of the pad at max lift. For the flip-ups, there is a 6″ difference from the low position to the high position.

Requirement:
– Motor: 2 HP
– Voltage: 208V-230V


Includes:

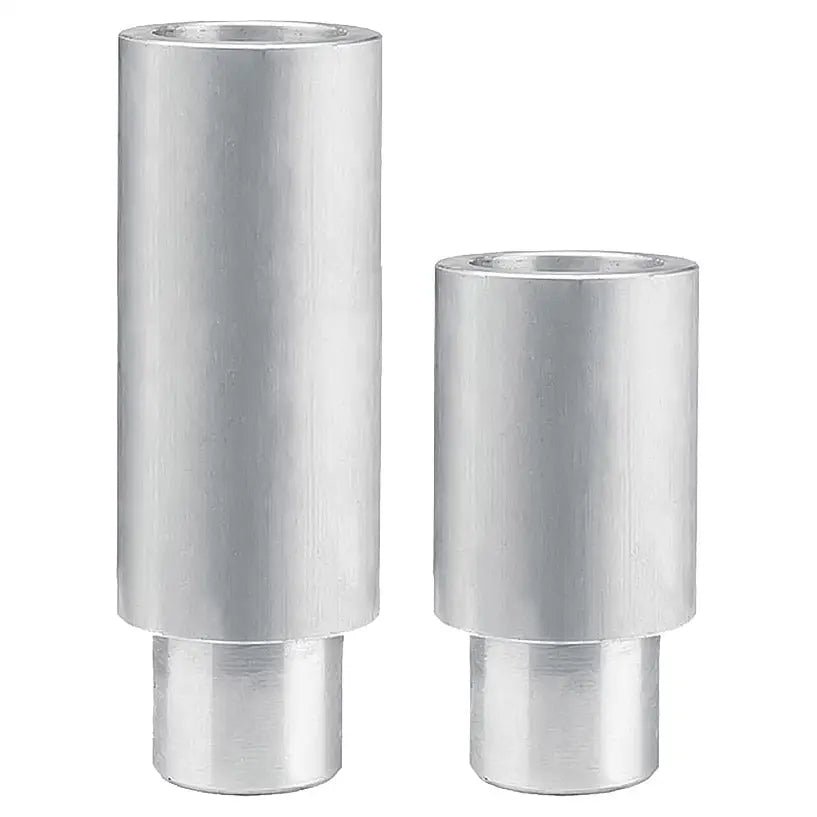

4 x FJ6171-1 – 3.5in tall extension
4 x FJ6171-2 – 5in tall extension
