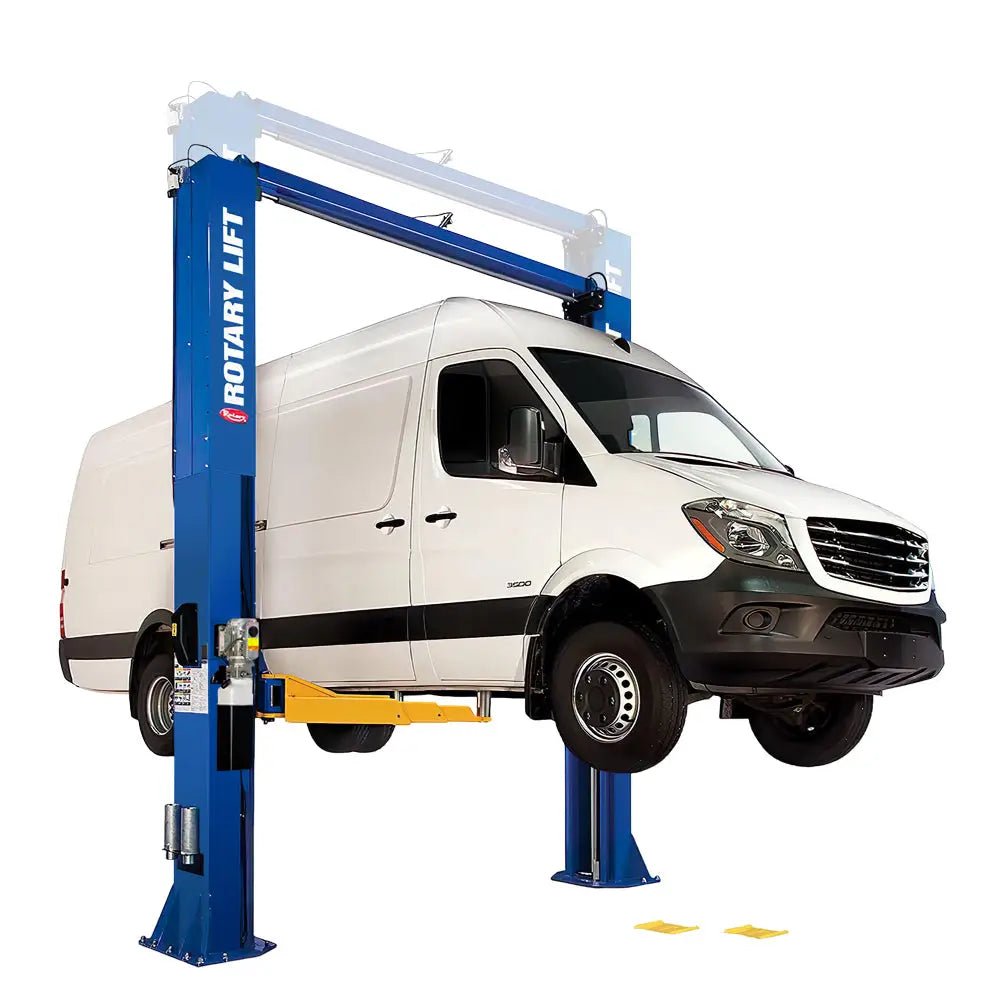

Rotary SPO16-AV-LC Low-Clearance 16K 2-Post Vehicle Lift w/ AV Arms, Adjustable Width
Rotary SPO16-AV-LC Low-Clearance 16K 2-Post Vehicle Lift w/ AV Arms, Adjustable Width - Image 2
Rotary SPO16-AV-LC Low-Clearance 16K 2-Post Vehicle Lift w/ AV Arms, Adjustable Width - Image 3
Rotary SPO16-AV-LC Low-Clearance 16K 2-Post Vehicle Lift w/ AV Arms, Adjustable Width - Image 4
Rotary SPO16-AV-LC Low-Clearance 16K 2-Post Vehicle Lift w/ AV Arms, Adjustable Width - Image 5

Rotary SPO16-AV-LC Low-Clearance 16K 2-Post Vehicle Lift w/ AV Arms, Adjustable Width

$27,244.00

Rotary SPO16-AV-LC Low-Clearance 16K 2-Post Vehicle Lift w/ AV Arms, Adjustable Width

color
Choose an option
Rotary SPO16-AV-LC Low-Clearance 16K 2-Post Vehicle Lift w/ AV Arms, Adjustable Width
Add to cart
Buy Now
SKU: N/A Category: Tags:

The Rotary SPO16-AV-LC is the newest low-clearance evolution of the SPO16 platform, engineered with AV (All-Vehicle) 3-stage arms to service modern mixed fleets,including EVs, trucks, SUVs, and low-profile vehicles,in shops with limited ceiling height.

Designed for maximum flexibility, reduced adapter height, and expanded arm reach, the SPO16-AV-LC delivers 16,000 lb lifting capacity with Rotary’s proven durability, safety systems, and installation versatility.

Features:

  • Low-Clearance (LC) Design
    Optimized for shops with low ceilings
    Overall height options: 162-inch or 174-inch (with +2-inch ceiling allowance)
    Ideal for retrofits and space-constrained service bays
  • AV (All-Vehicle) 3-Stage Arms, Newest Generation
    Expanded arm reach to accommodate cars, SUVs, trucks, and EVs
    Increased spotting flexibility vs older SPO16 arm designs
    Supports modern lift points and wide vehicle footprints
  • Low-Profile Lifting Capability
    4-3/4-inch minimum adapter height
    Screw-up frame cradles for precise vehicle contact
    Excellent for lowered, performance, and low-clearance vehicles
  • High-Capacity, Heavy-Duty Performance
    16, 000 lb rated capacity
    Symmetric 2-post configuration for balanced lifting
    Built for commercial and high-volume service environments
  • Adjustable Width Configuration
    Accommodates a wide range of wheelbases and track widths
    Improves bay versatility and vehicle positioning
  • Rotary Engineering and Reliability
    Rotary-designed hydraulic and safety systems
    Industry-recognized build quality and long-term durability
    Available in Red or Blue

Specs:

Model: SPO16-AV-LC
Lift Type: 2-Post, Symmetric
Capacity: 16,000 lb
Ceiling Height Requirement:
– 162in or 174in overall height options
– +2in ceiling allowance recommended
Arm Type: 3-Stage AV (All-Vehicle) Arms
Minimum Adapter Height: 4-3/4in
Width: Adjustable
Adapters Included:
– 5in Stack Adapters (Set of 4)
– 10in Stack Adapters (Set of 2)
– Rubber Pads (Set of 4)
Colors: Red or Blue
Concrete Requirement:
– Minimum 4-1/4in thickness
– Minimum 3000 PSI concrete
Air Requirement: 90-100 PSI
Electrical: Dedicated 208-240V circuit (20A recommended)

Similar Product
SPO16-AV (Standard Model)

Application:

Automotive repair shops
Tire and wheel service centers
Fleet maintenance facilities
EV and mixed-vehicle service bays
Performance and specialty vehicle shops
Dealership service departments
Low-ceiling or retrofit installations

Vehicle Fitment
Passenger cars
SUVs and crossovers
Light- and medium-duty trucks
Electric vehicles (EVs)
Low-profile and lowered vehicles
Mixed-fleet service environments

Includes:

Include Accessories
– 5in stack adapters (Set of 4)
– 10in stack adapters (Set of 2)
– Rubber pads (Set of 4)
