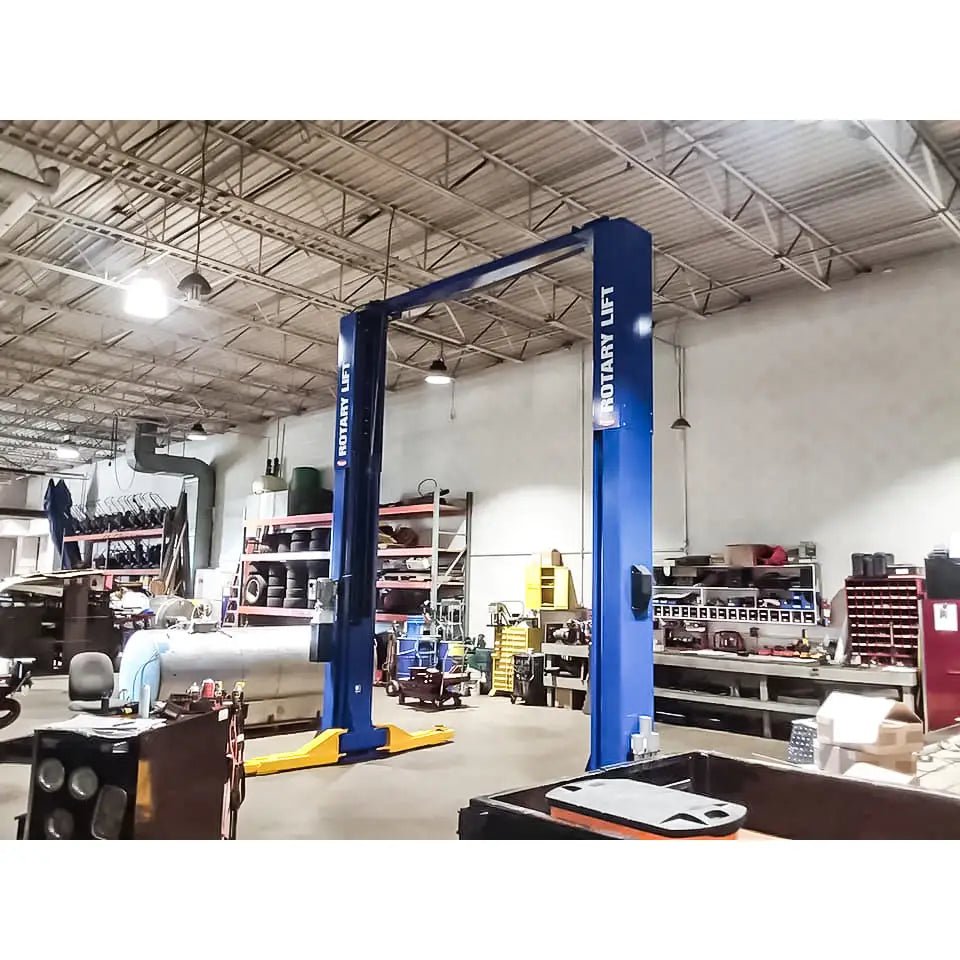

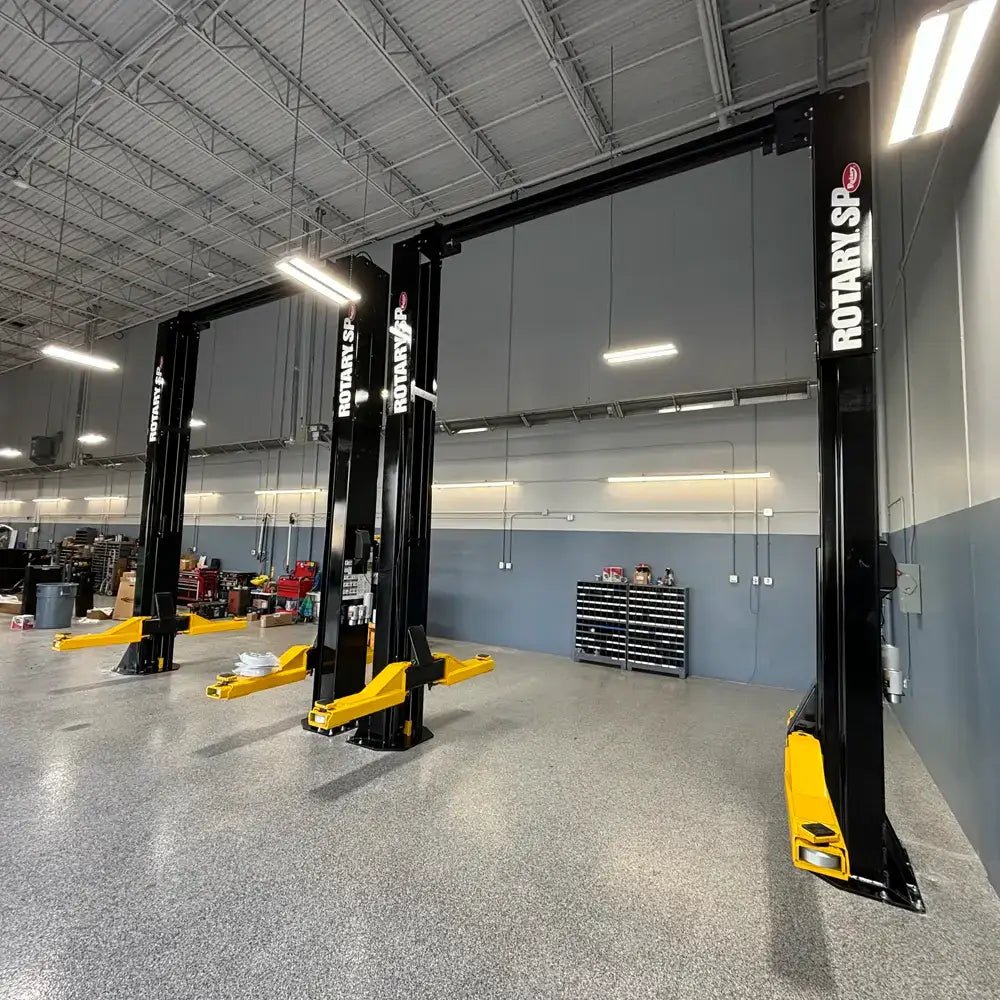

Introducing the Rotary SPO20 ALI 20K Symmetric Two-Post Lift with TRIO Arms, perfect for automotive, fleet maintenance, and construction equipment businesses. This industry-leading lift offers increased capacity and patented TRIO-ARMS for versatile vehicle servicing. ALI-certified, it comes with automatic arm restraints and multi-position locking systems, ensuring safety and efficiency for automotive, fleet, and heavy equipment operations. Upgrade your lifting capabilities with this Rotary lift today!
Features:

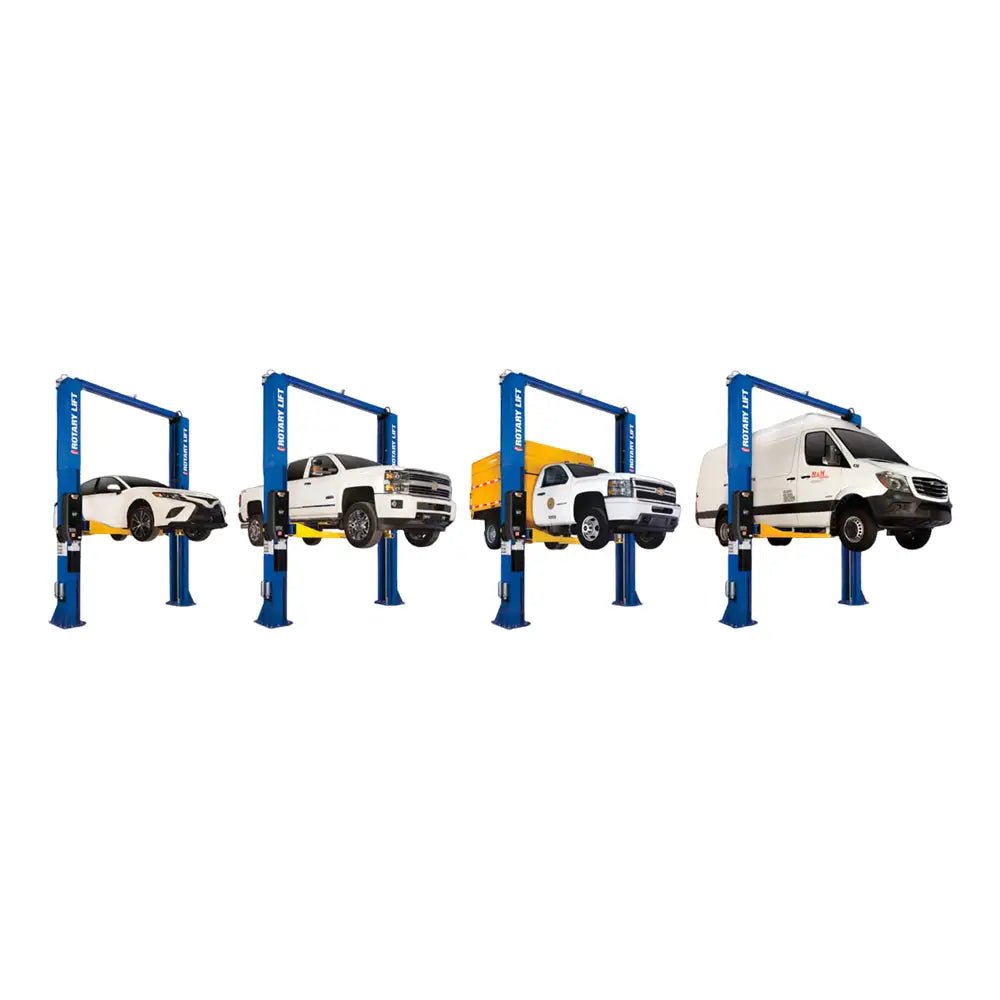

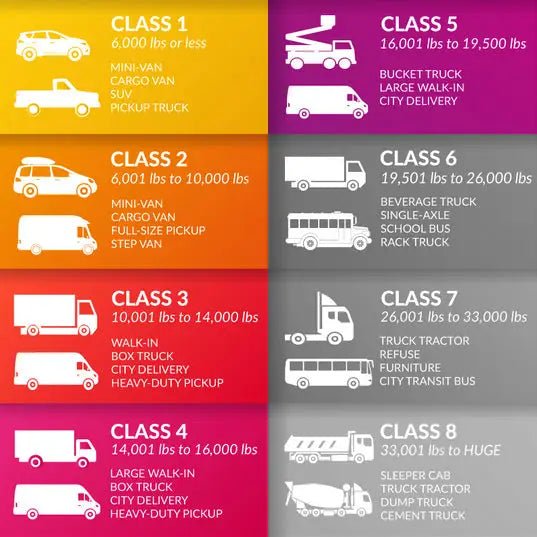

- Versatile Vehicle Capacity: Capable of lifting Class 1 through Class 5 vehicles, accommodating a wide range of vehicle sizes and types.

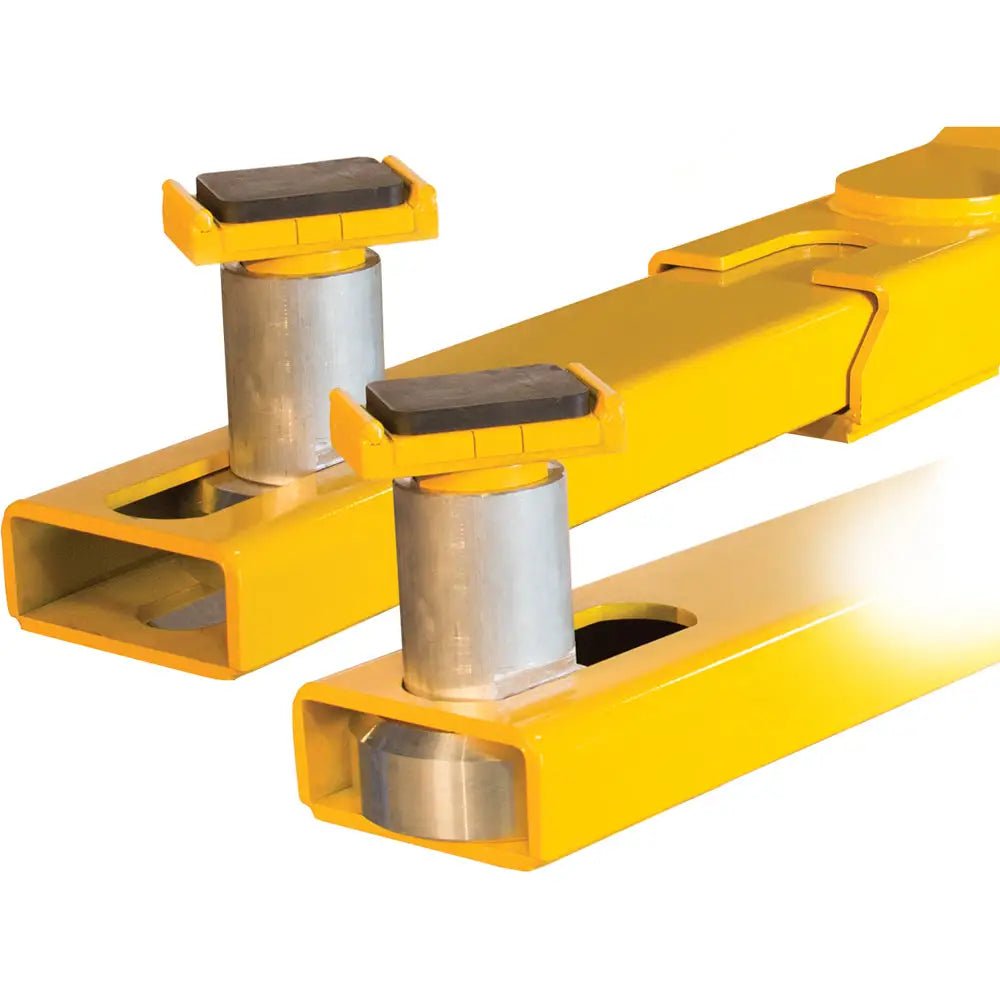

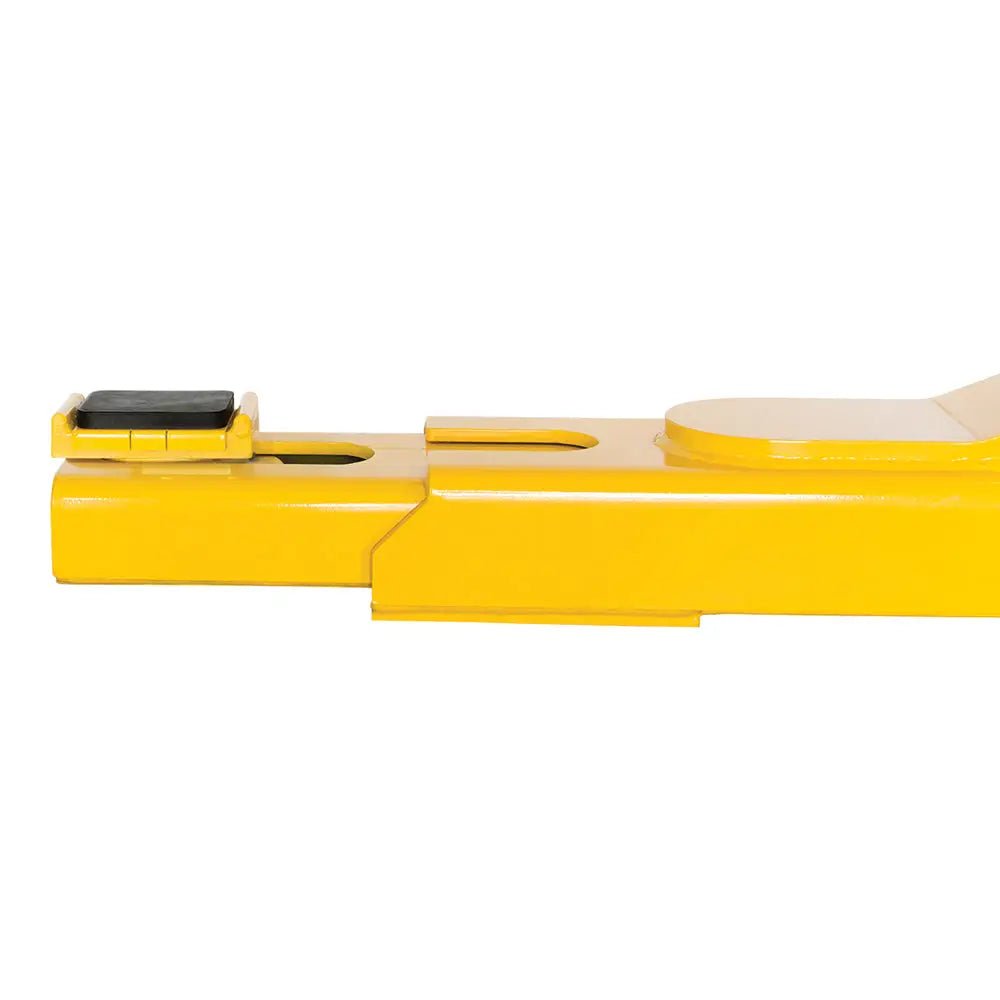

- Innovative Trio Arm Design: Featuring a patented Trio Arm Design that offers enhanced stability and flexibility during vehicle lifting.
- Certified Quality: ALI Certified for assurance of safety and performance compliance.
- Efficient Surface Mounting: Designed for surface-mounted installation, ensuring ease of setup and maintenance.
- Enhanced Safety: Equipped with automatic arm restraints, providing added security during lifting operations.
- Effortless Operation: Incorporates a convenient single-point air lock release system for quick and hassle-free lowering of vehicles.
- Secure Locking Mechanism: Boasts a multi-position locking system, ensuring that vehicles are securely held in place during maintenance.
- Robust Construction: Utilizes an original single-piece “Double S” column construction for maximum durability and stability.
- Reliable Hydraulics: Features hydraulic cylinders in each column, delivering powerful and precise lifting capabilities.

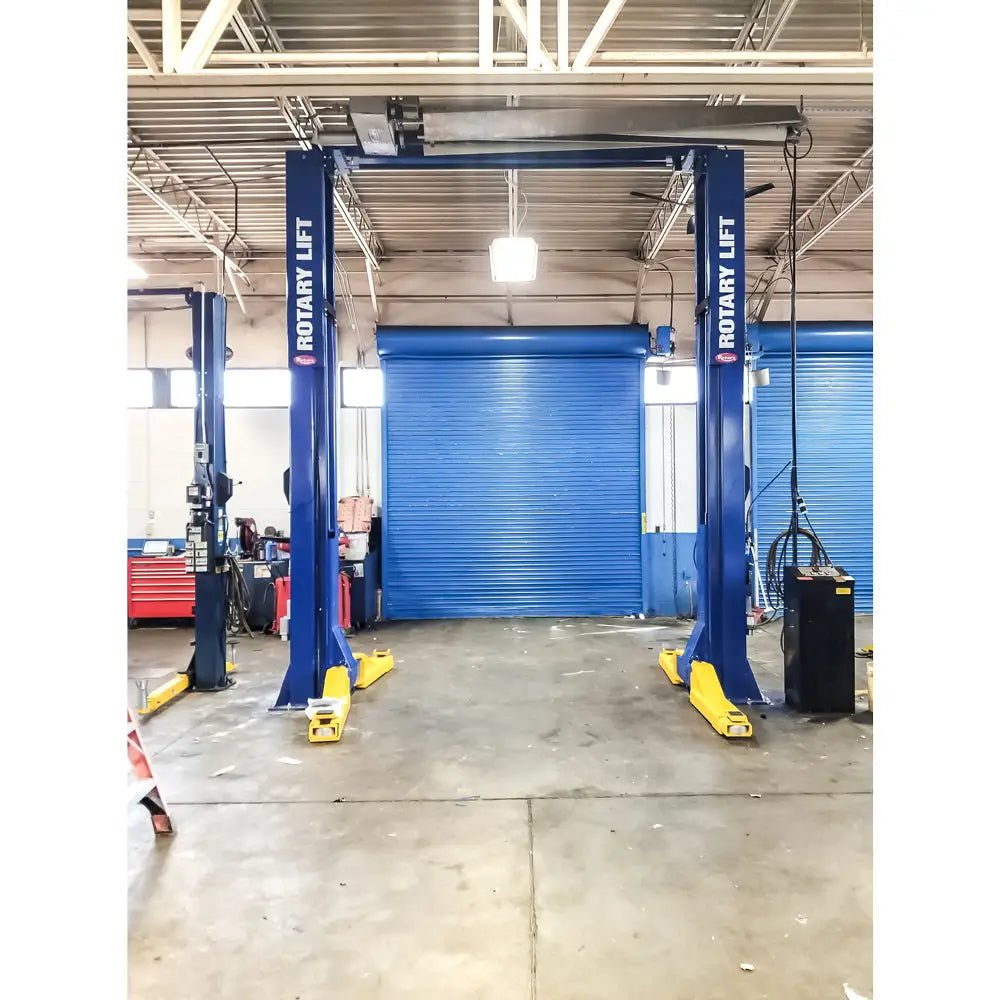

- Flexible Design: Offers both overhead cable and clear floor design options, accommodating different workspace layouts and preferences.
- Comfortable Operator Experience: Includes an overhead padded switch bar for operator comfort and control.
- Accurate Positioning: Equipped with a multi-position wheel spotting dish, facilitating precise and efficient vehicle positioning on the lift.
Specs:
Adapters: Truck / Optional Round Adapters
Capacity: 20,000 lbs.
Max. Load (per arm): 5,000 lbs.
Rise*: 80in
Height Configurations: Available in height increments of 6in between 180in to 198in
Required Ceiling Height: 182 – 200in
Overall Width: 161in
Drive-Thru Width: 111.34in
Inside Columns: 126.46in

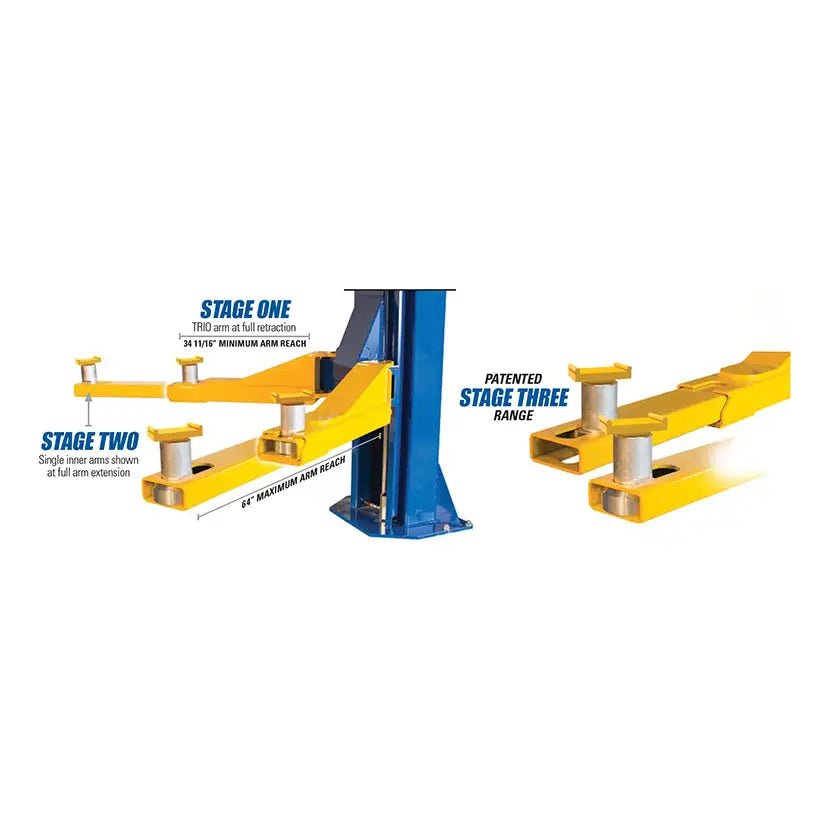

Front Arm Min/Max: 34.68in – 64in
Rear Arm Min/Max: 34.68in – 64in

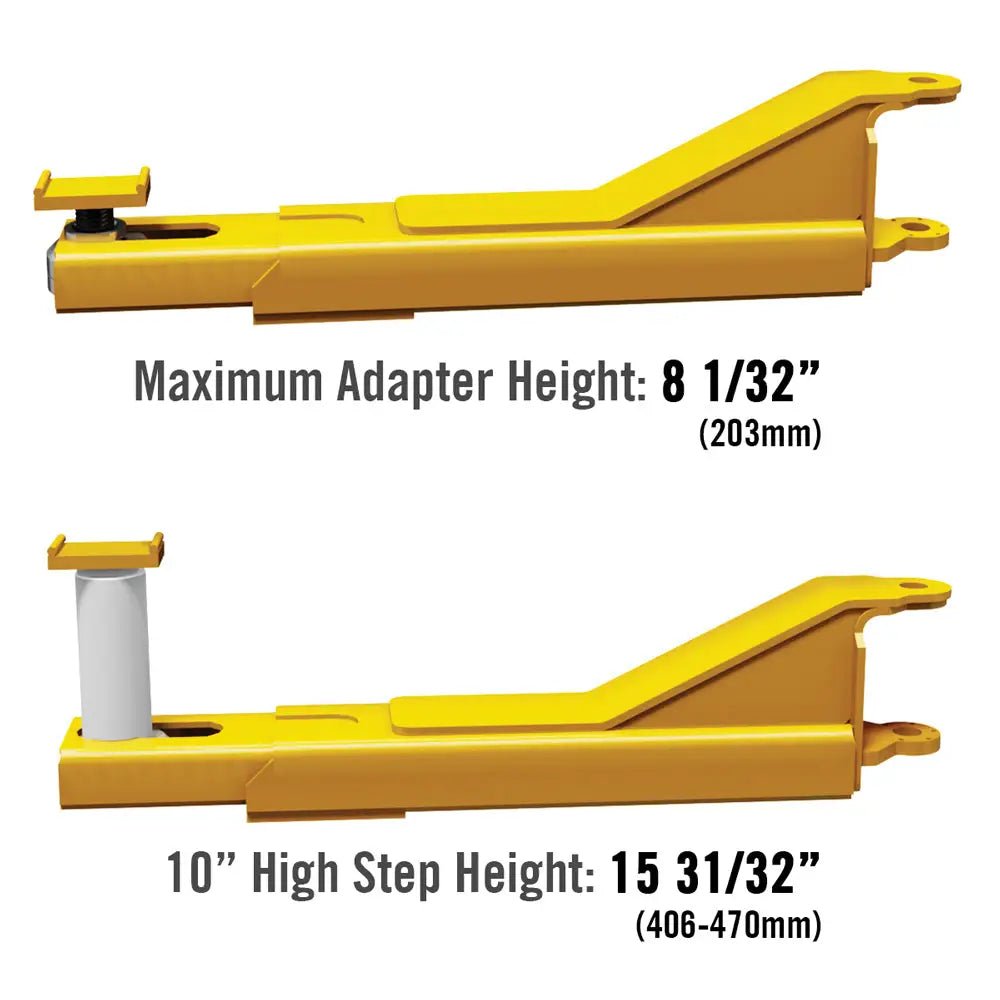

Min. Adapter Height: 5.96in
Max. Adapter Height: 8.03in
Motor: 4 HP
Voltage: 208v-230v
Time of Full Rise: 81 seconds
Min. Bay Size: 180in x 360in
Weight: 3,500 lbs

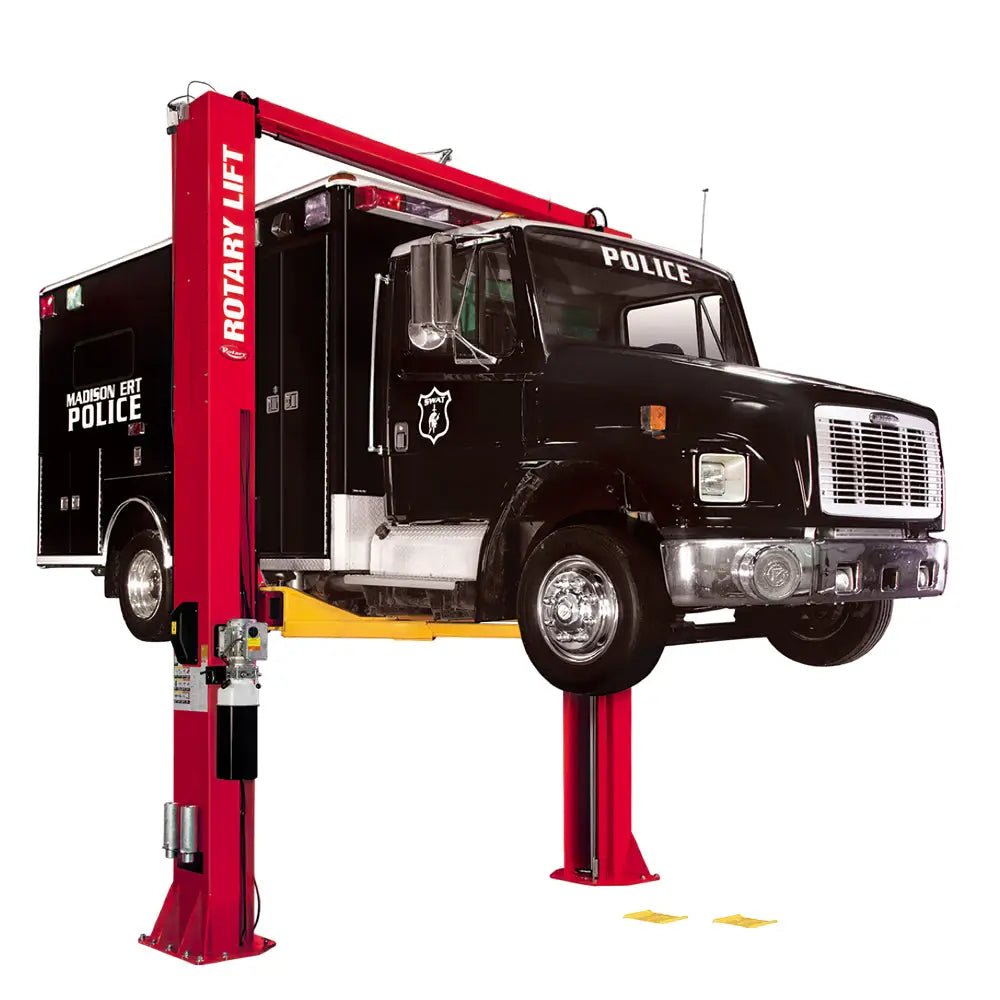

Color: Red or Blue
Shockwave
Motor: 5 HP
Voltage: 110v
Ref No.
SPO20N1T0
Similar Product
SPO16 (16,000 lbs Model)
SPO20N1TL (Low-Ceiling Model)
SPO20WIDE
SPO20NARROW
SPO20LOWCEILING
Ref Name
ALI-Certified Two-Post Symmetric Lift
Rotary Symmetric 20K Lift with TRIO Arms
Application:
Auto Repair
Fleet Maintenance
Farm Machinery
Industrial Use
Home Garages
Includes:
TRIO Front & Rear Arms
Screw-Up Frame Cradles (6in low hgt)
4 x Clip-on rubber pads
Extensions
2 x 10in
4 x 5in
