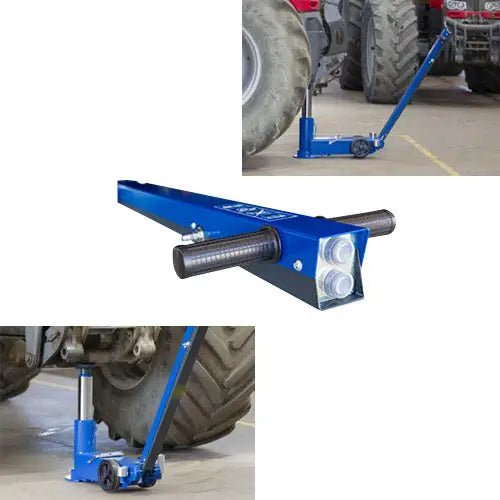

AC Hydraulic 25 Ton Air Hydraulic Jack, 1 Stage
AC Hydraulic 25 Ton Air Hydraulic Jack, 1 Stage - Image 2

AC Hydraulic 25 Ton Air Hydraulic Jack, 1 Stage

Current price is: $3,314.00. Original price was: $5,190.00.

AC Hydraulic 25 Ton Air Hydraulic Jack, 1 Stage

AC Hydraulic 25 Ton Air Hydraulic Jack, 1 Stage

Current price is: $3,314.00. Original price was: $5,190.00.

Add to cart
Buy Now
Category: Tags:

AC 25 Tons Single-stage air hydraulic jack for agricultural and contractors’ machinery, trailers, and other high clearance applications

Features:

  • Minimum height of 14.21 in
  • Maximum height of 24.06 in, the F250 (optional) extension offers a total extended height of 33.90 in
  • Hard chromium plated piston rod for long life
  • Built-in safety overload valve
  • Hand-operated dead-man’s control for optimum safety whilst lifting and lowering
  • 25-1HTH model with telescopic handle increasing the reach under the vehicle to 212 mm ensuring safe and easy operation
  • With 2 extensions (1.97/3.94 in)

Specs:

Capacity: 55000 lbs / 25 Tons
Min. height: 14.21 in
Max. height: 24.06 in
Frame length: 32.17 in
Handle length: 53.35 in
Width: 9.06 in
Width (with wheels): 12.28 in
Air supply: 130 – 174 psi
Air consumption: 350 l/min
Weight: 157 lbs

Application:

Tractor
Trailer
High Clearance Machinery
