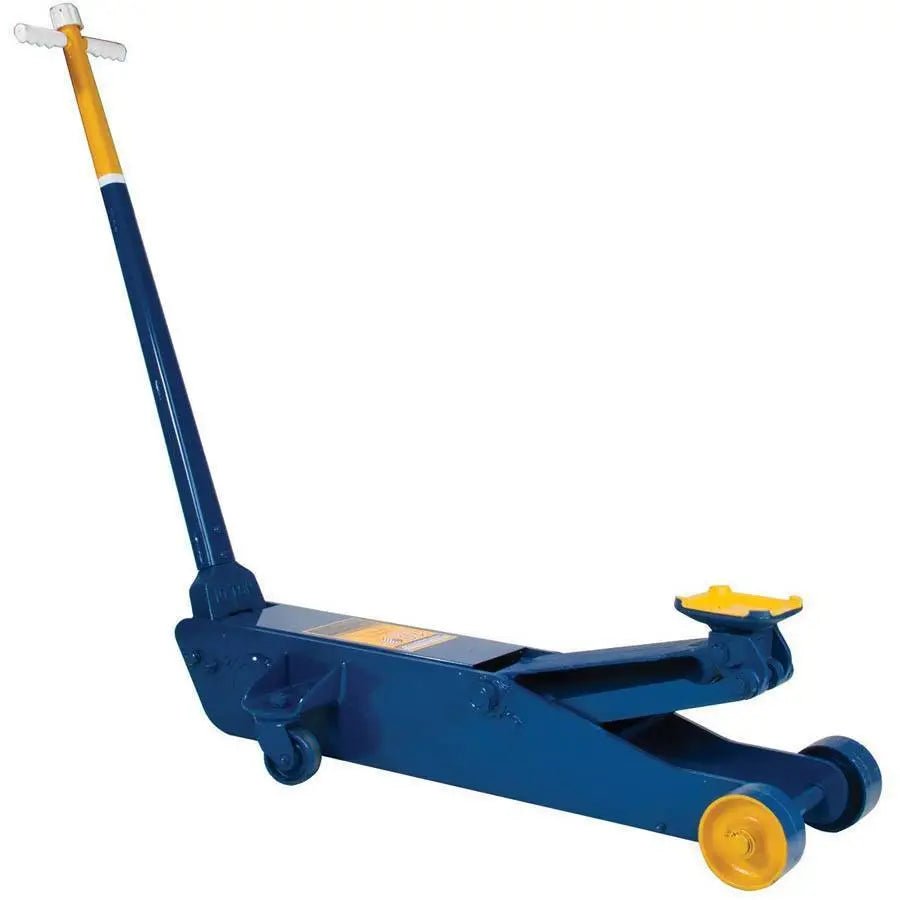

Hein-Werner Manual 10 Ton Hydraulic Service Jack – HW93660

Hein-Werner Manual 10 Ton Hydraulic Service Jack

The Hein-Werner Manual 10 Ton Hydraulic Service Jack HW93660 provides dependable lifting for trucks, trailers, and buses by the axle, differential, or frame.

Heavy-Duty Manual Lifting Performance

• 10-ton lifting capacity
• Dual-piston action for fast contact and powerful lifting
• Long chassis for hard-to-reach lifting points
• Handle adjusts to three pumping positions
• T-handle with release knob for precise load positioning

Durable Design for Professional Use

• Sealed hydraulic unit helps keep out grit, grime, and moisture
• Large full-swivel saddle and ball-bearing caster for easy positioning
• Cast lift arm for heavy loads
• Made in the USA

Specifications

• Capacity: 10 Ton
• Minimum Height: 6-3/4 in
• Maximum Height: 25-1/2 in
• Power Raise: 18-3/4 in
• Saddle Diameter: 8-1/2 in
• Handle Length: 56 in
• Chassis Length: 53-1/2 in
• Chassis Height: 9-1/2 in
• Wheel to Wheel Width: 20-1/2 in
