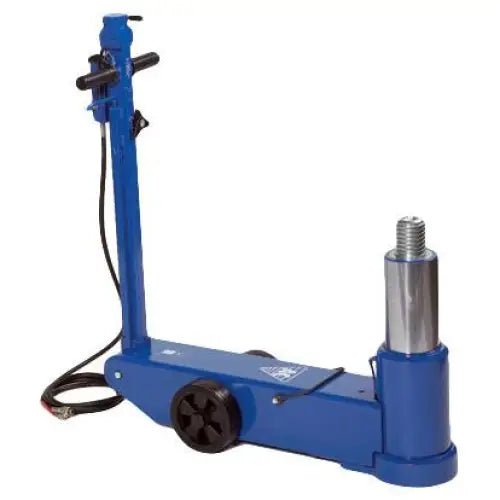

AC Hydraulic 65 Ton Aircraft Jack with Extra Long Stroke – 65-1APH

AC Hydraulic 65 Ton Aircraft Jack with Extra-Long Stroke – 65-1APH

The AC Hydraulic 65-1APH is a compact air/hydraulic aircraft jack designed for high-capacity lifting with an extra-long reach and stroke.

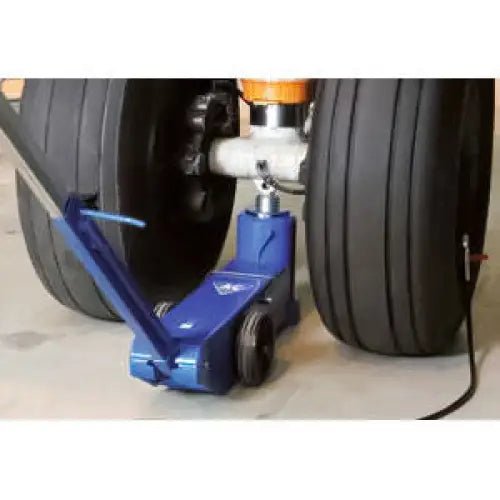

Aircraft Lifting Performance

• 65-ton capacity, rated for 143,000 lb
• Telescopic handle reaches up to 90.28 in under the aircraft

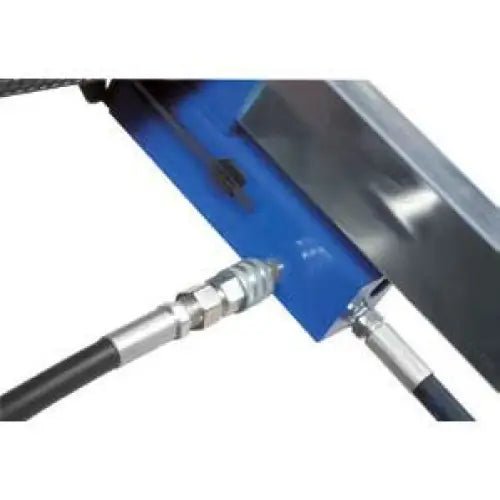

• Operates with compressed air or nitrogen

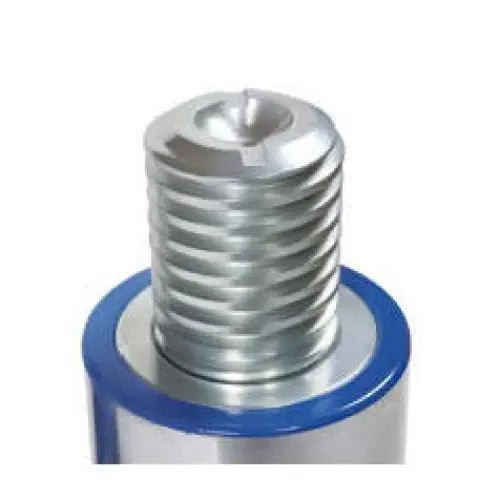

• 3.15-inch extension screw
• Rapid ram retraction without load
• Manual lowering, overload protection, and dead-man safety release
• Designed according to EN1915:2001 and EN12312:2005

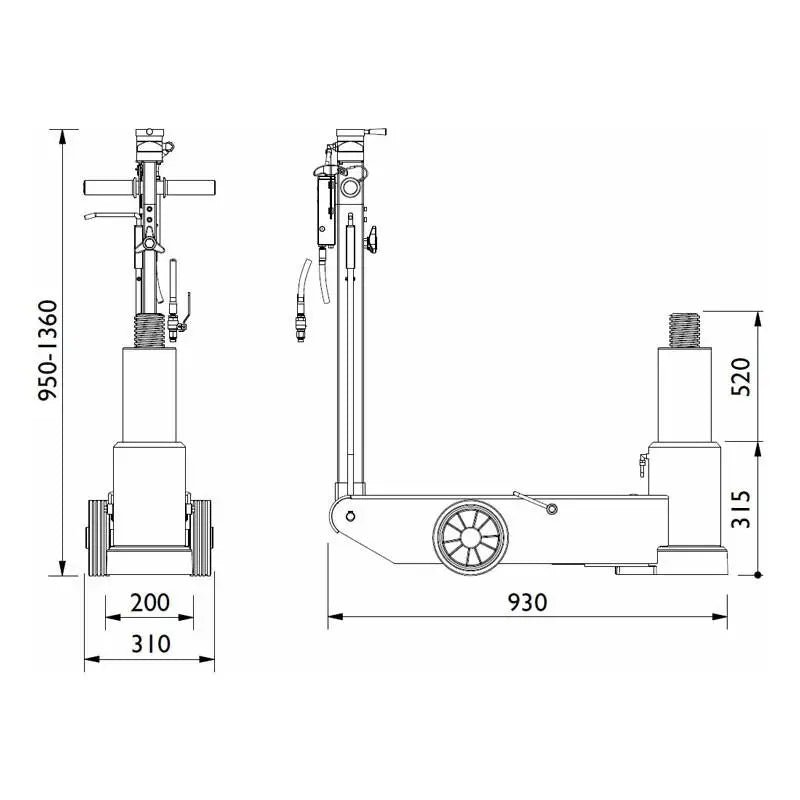

Specifications

• Minimum Height: 12.36 in
• Maximum Height: 20.47 in
• Frame Length: 36.37 in
• Handle Length: 37.40–53.54 in
• Width: 7.87 in
• Width with Wheels: 12.20 in
• Air Supply: 130–174 PSI
• Weight: 207 lb
