BendPak 10AP 10K Two-Post Lift with Bi-Metric Arms and Width Adjustment

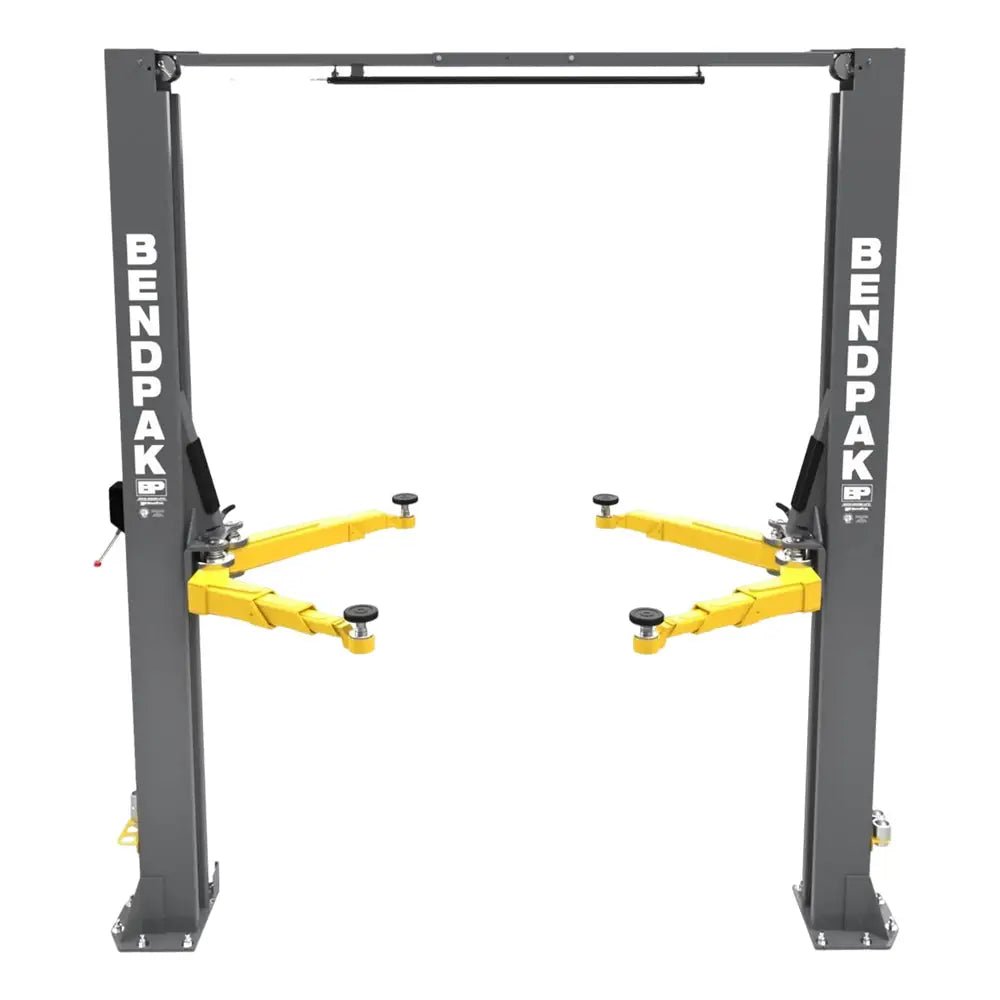

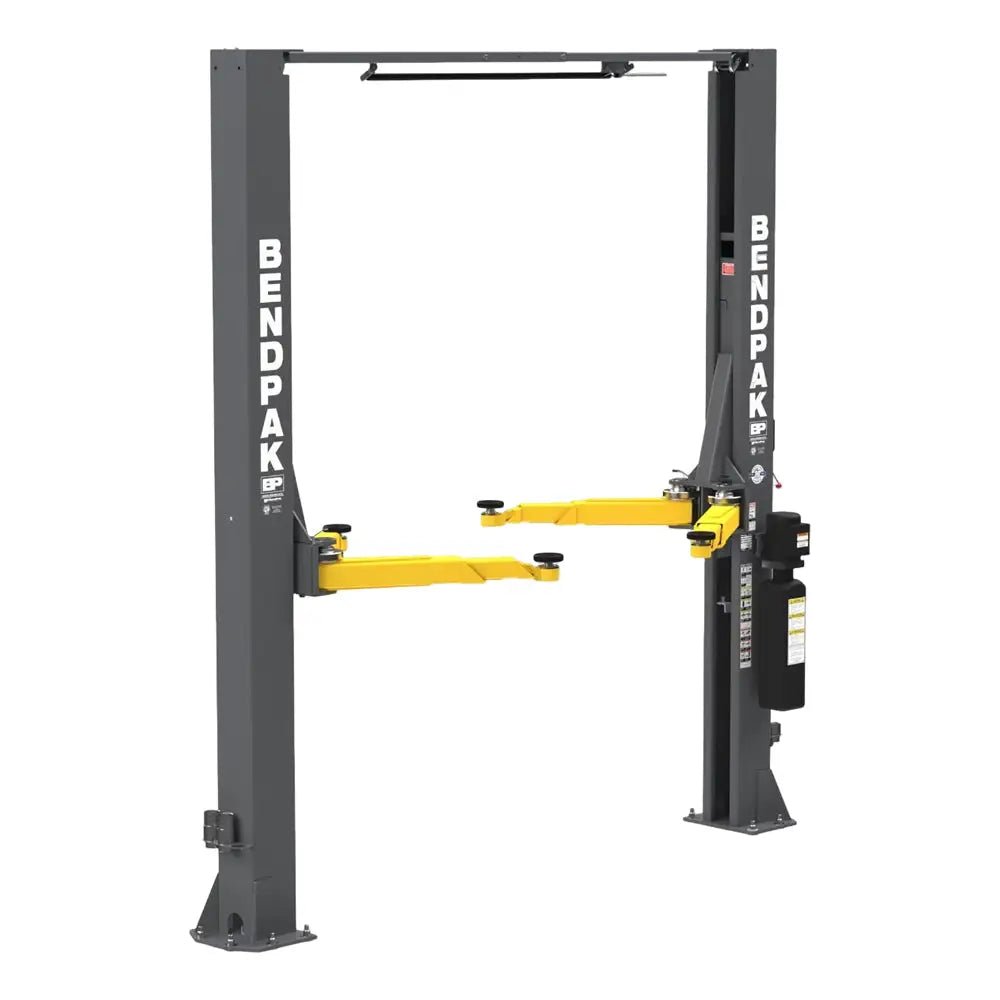

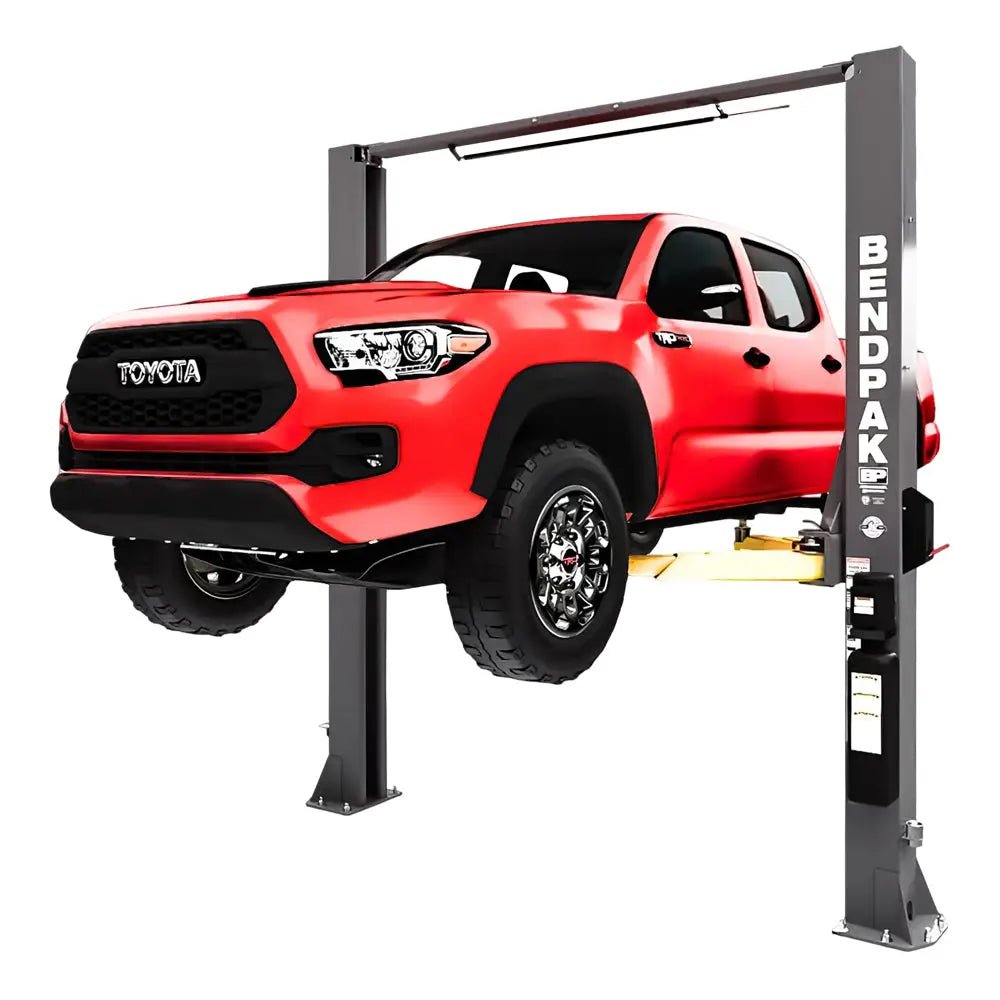

The BendPak 10AP is a 10,000 lb two-post lift with Bi-Metric swing arms, flexible symmetric and asymmetric positioning, and width-adjustment options. It is designed for modern automotive shops, dealerships, fleets, and tire centers.

BendPak 10AP Features

• 10,000 lb capacity

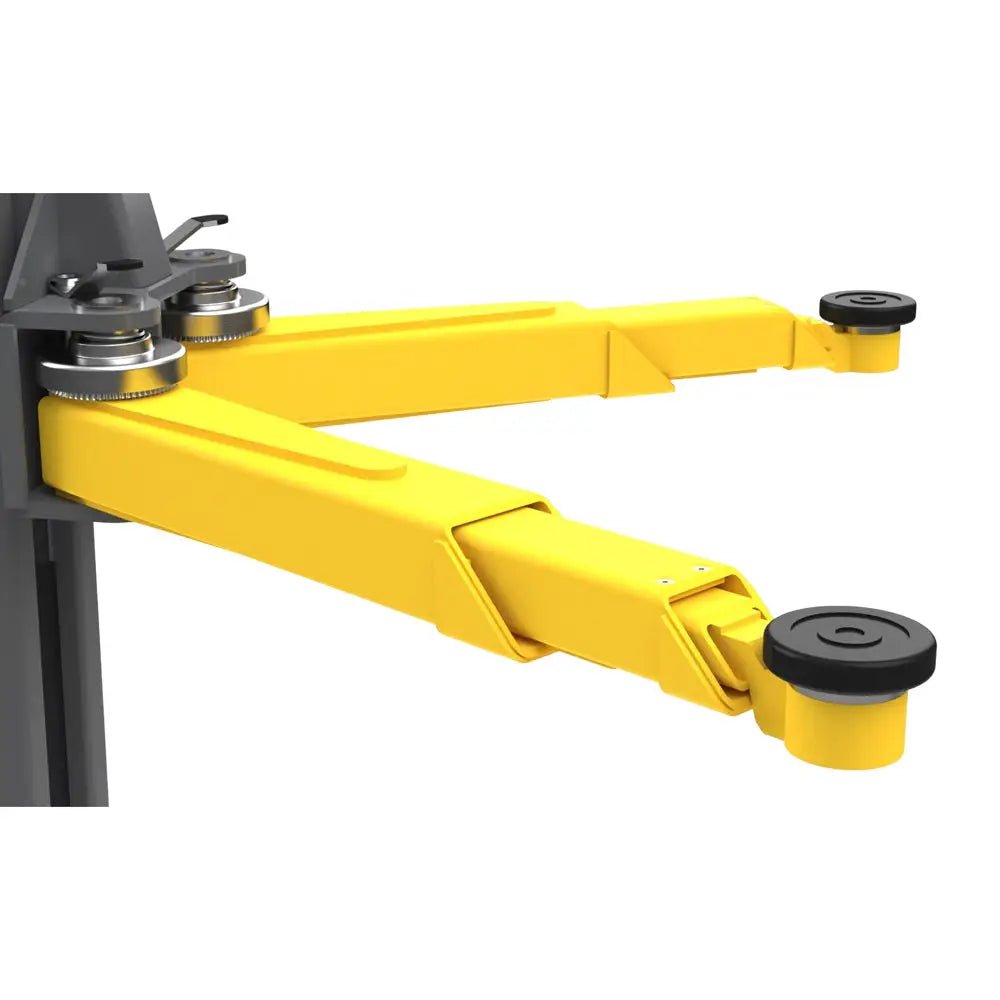

• Bi-Metric arm design for symmetric or asymmetric lifting
• Width-adjustable drive-through configurations

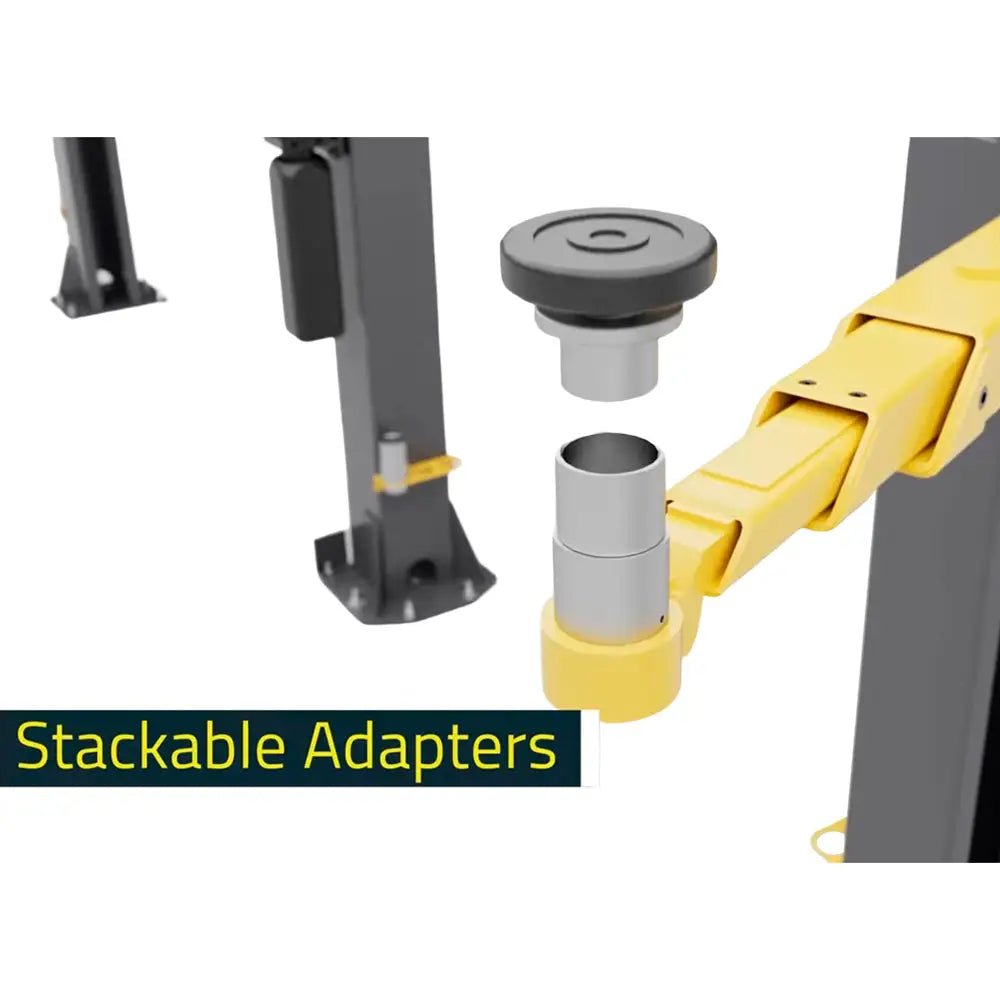

• Double-telescoping screw pads
• Padded overhead safety shutoff
• Single-point safety release
• Low-profile drop-end arms
• Dual hydraulic direct-drive cylinders

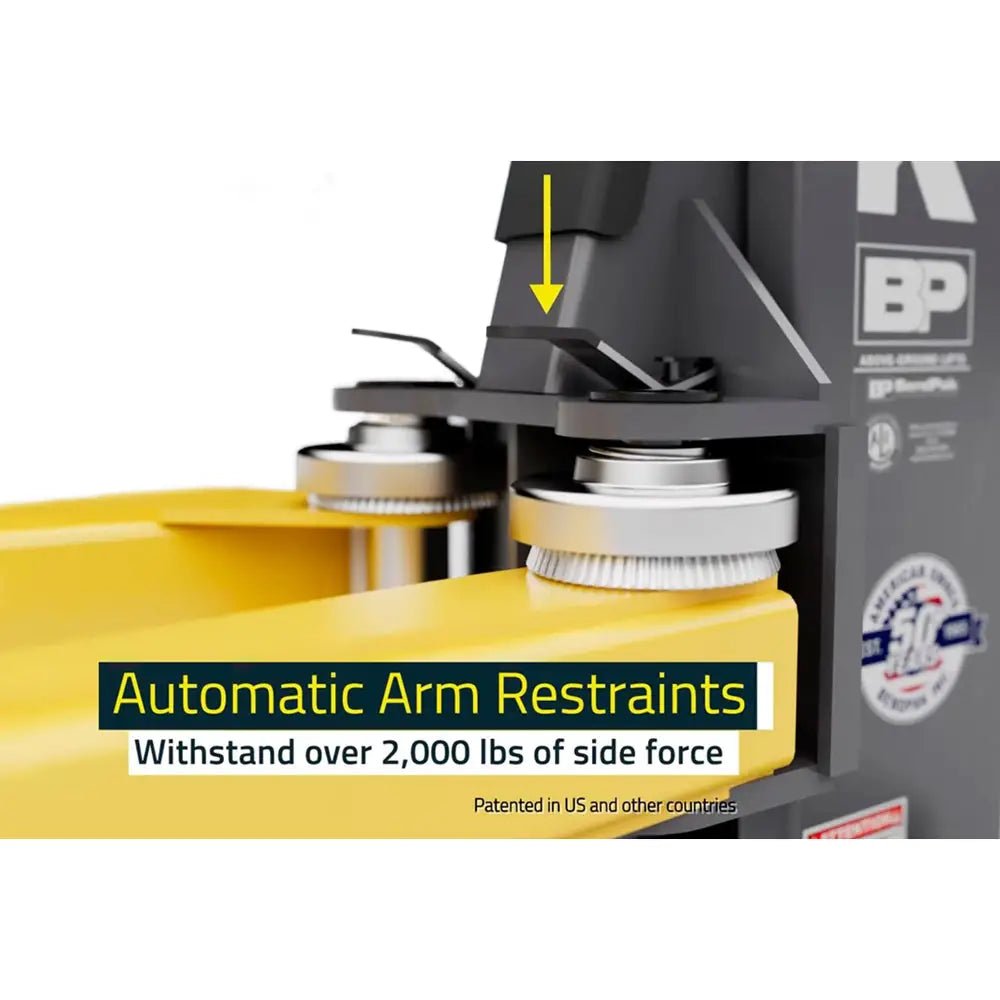

• Automatic arm restraints
• Safety locks every 3 in
• ALI certified

BendPak 10AP Specifications

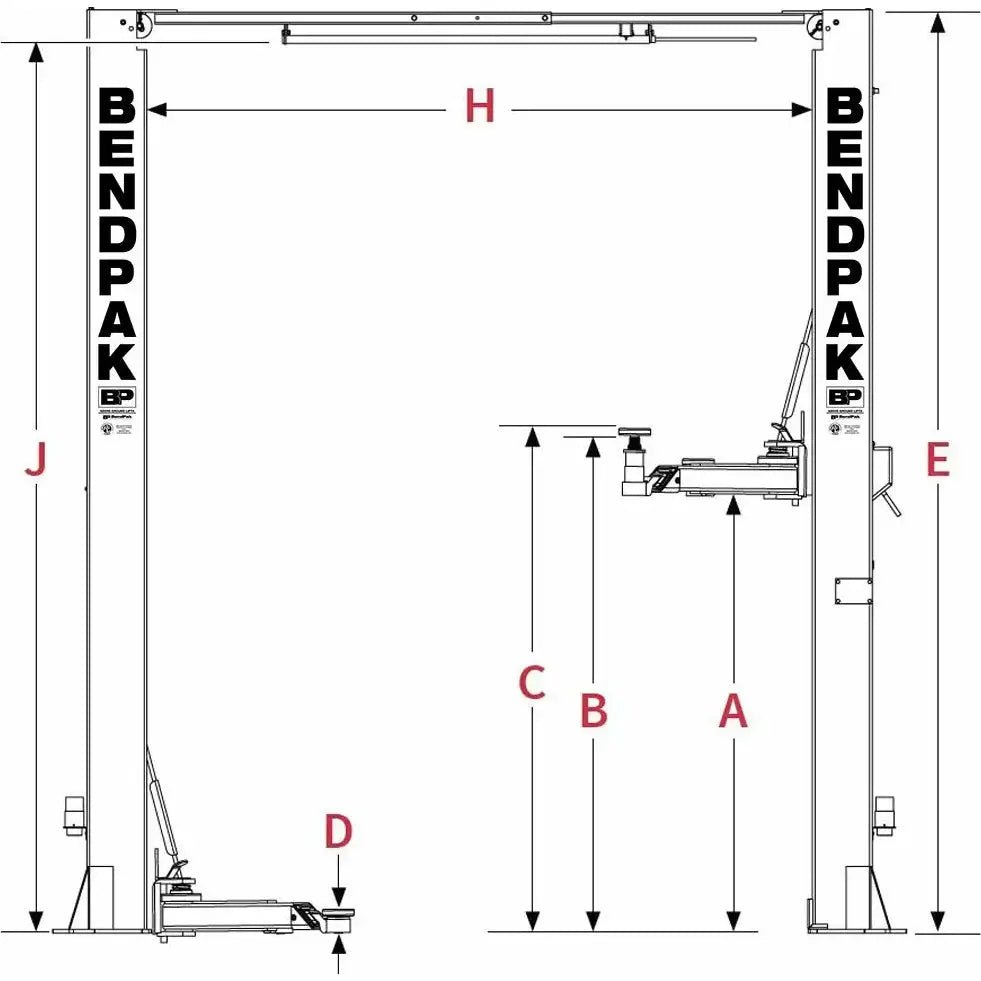

• Maximum Rise: 69 in
• Rise with Pad and Adapter: 82.5 in
• Minimum Height with Pad: 4 in
• Overall Height: 145 in

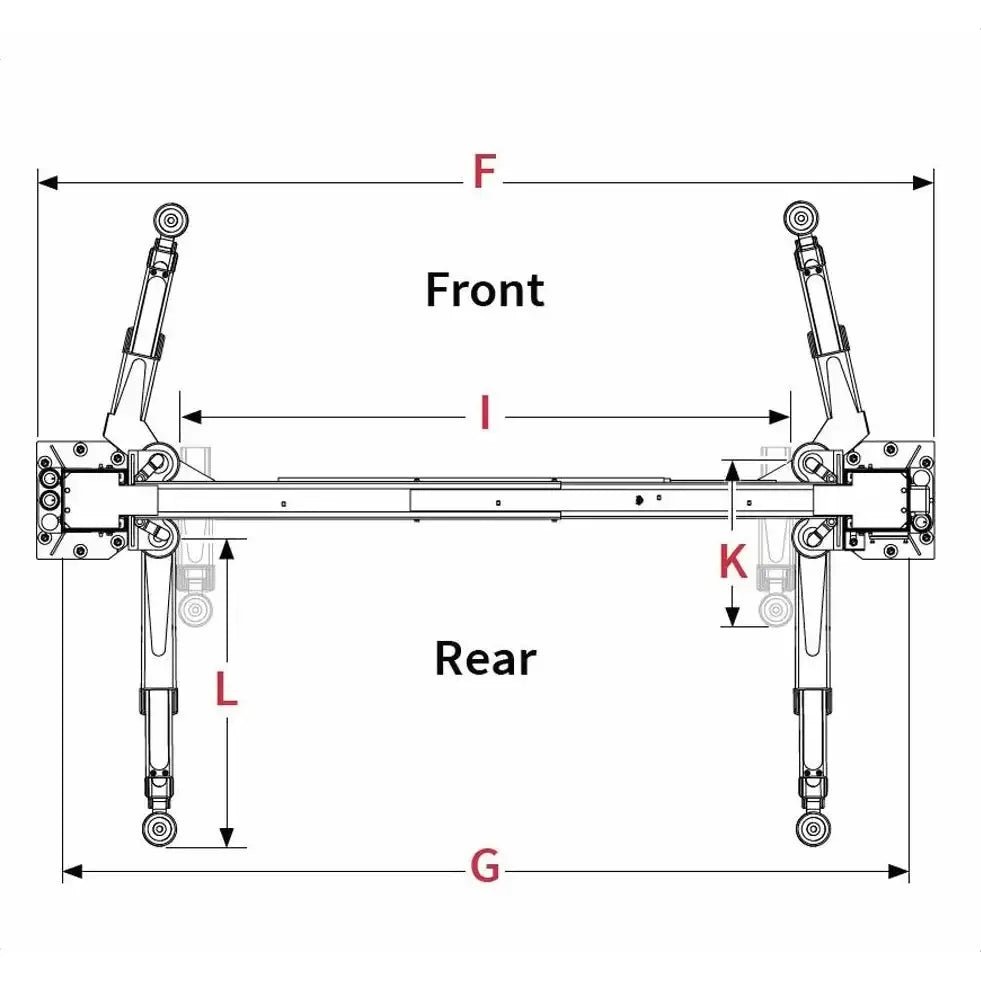

• Overall Width: 135 or 145 in
• Drive-Through Clearance: 97.5 or 107.5 in

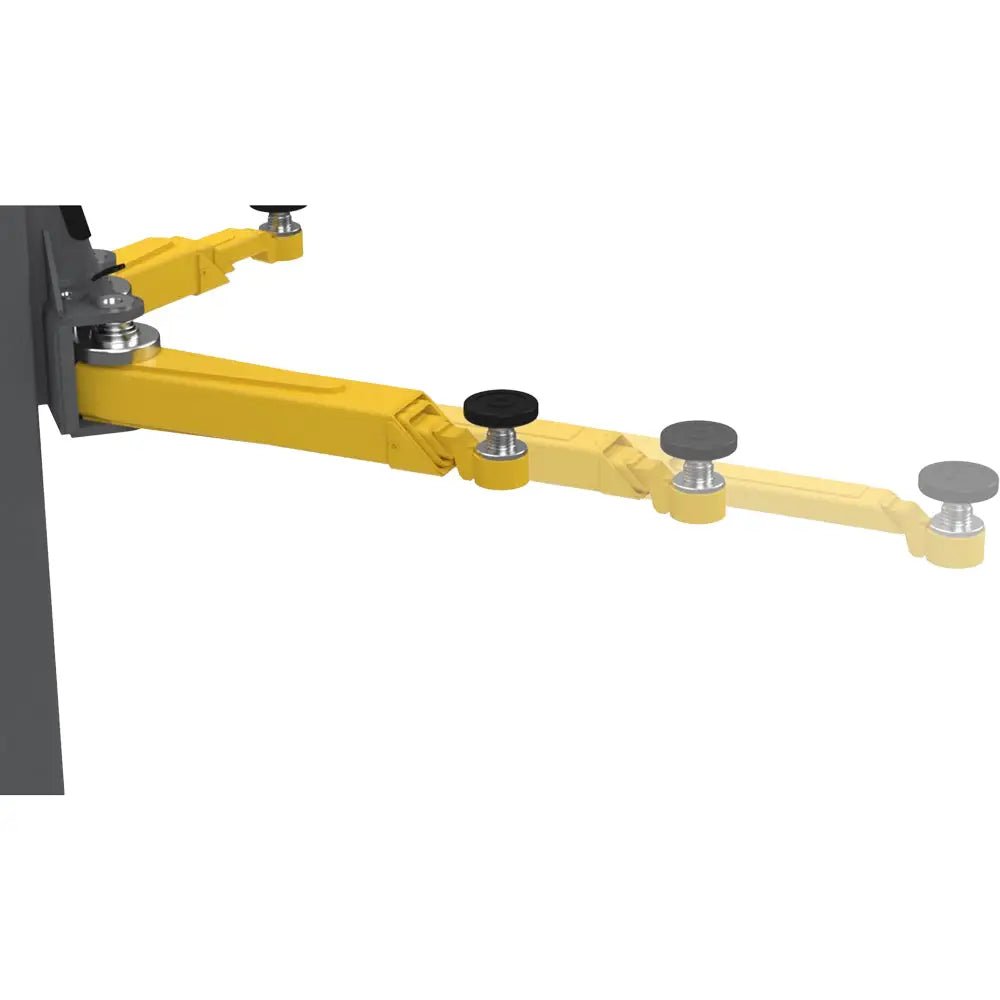

• Front Arm Reach: 24.5-50 in
• Rear Arm Reach: 32-59.25 in
• Motor: 220 VAC, 60 Hz, single phase
• Maximum Load per Arm: 2,500 lbs
