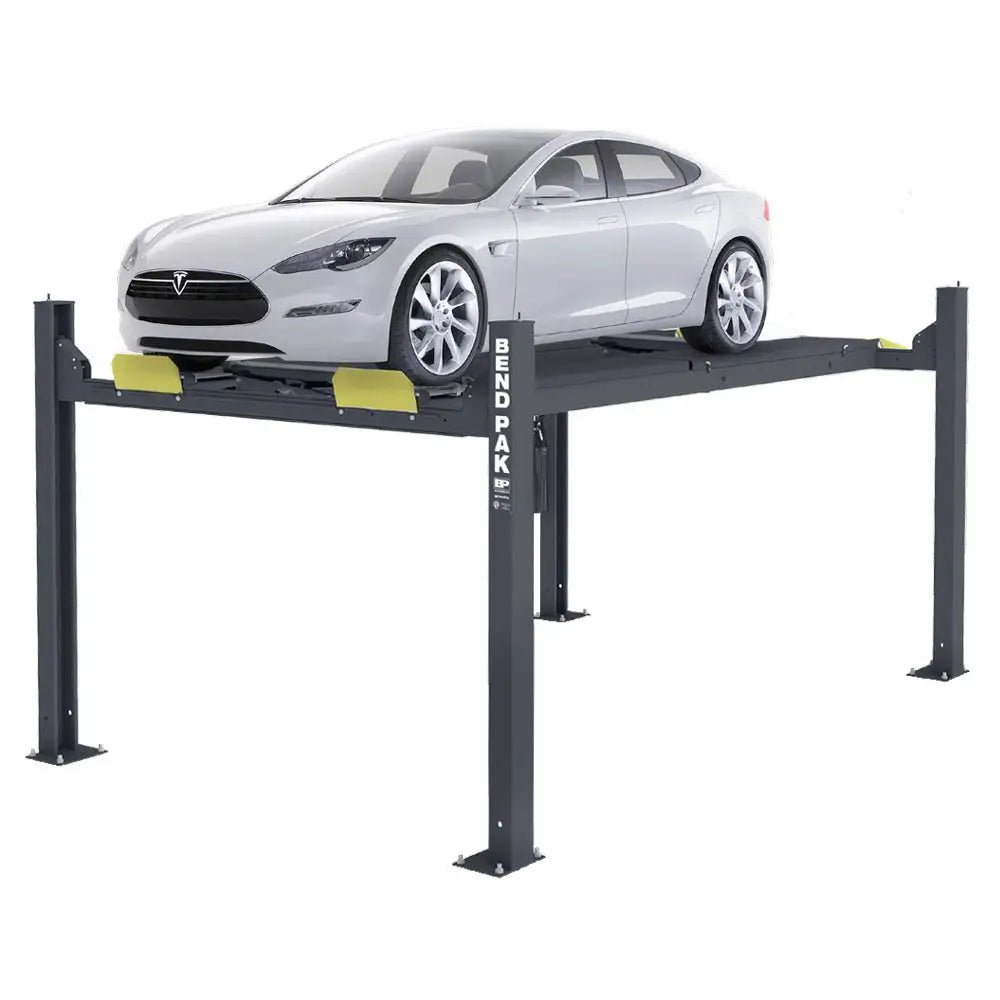

BendPak HD-9AE 9K lbs Alignment Four-Post Lift

BendPak HD-9AE 9,000 lb Alignment Four-Post Lift

The BendPak HD-9AE is a dependable alignment lift with adjustable multi-position leveling, integrated front radius plates, and rear slip plates. It supports 3D and camera-based wheel alignment systems.

Features

• 9,000 lb lifting capacity
• CE Approved and Certified to EN-1493 standards

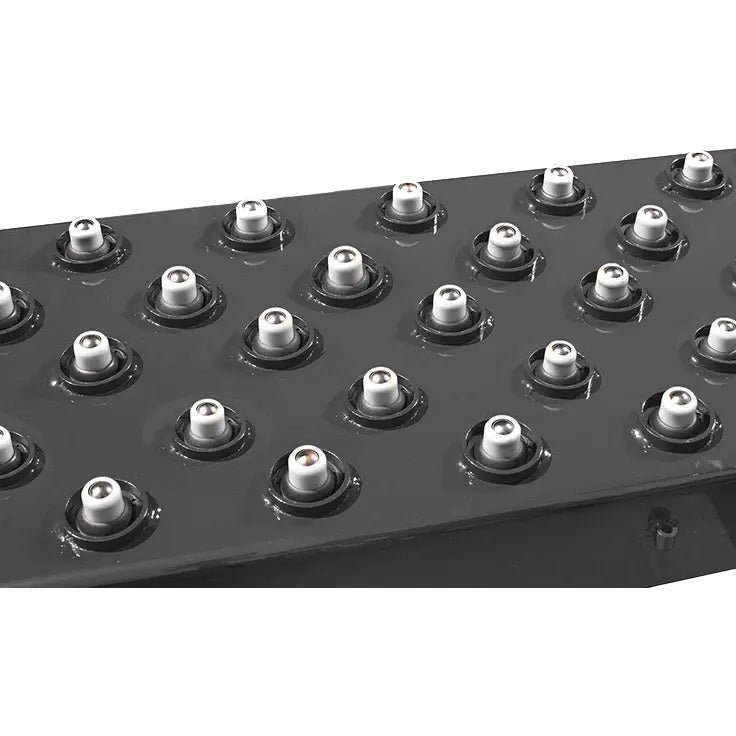

• Multi-caster slip plates and dual radius-plate positions
• Heavy-duty stainless-steel lifting cables
• Single hydraulic cylinder with integrated flow restrictor

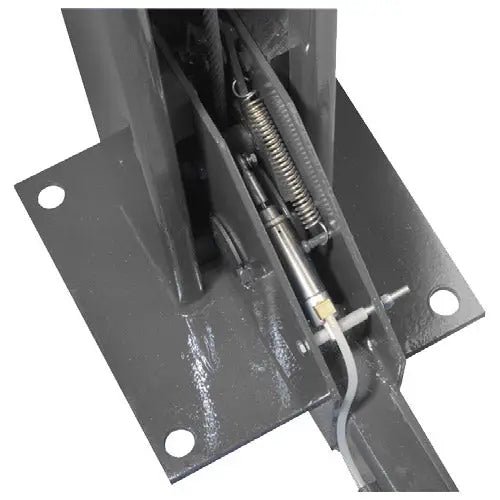

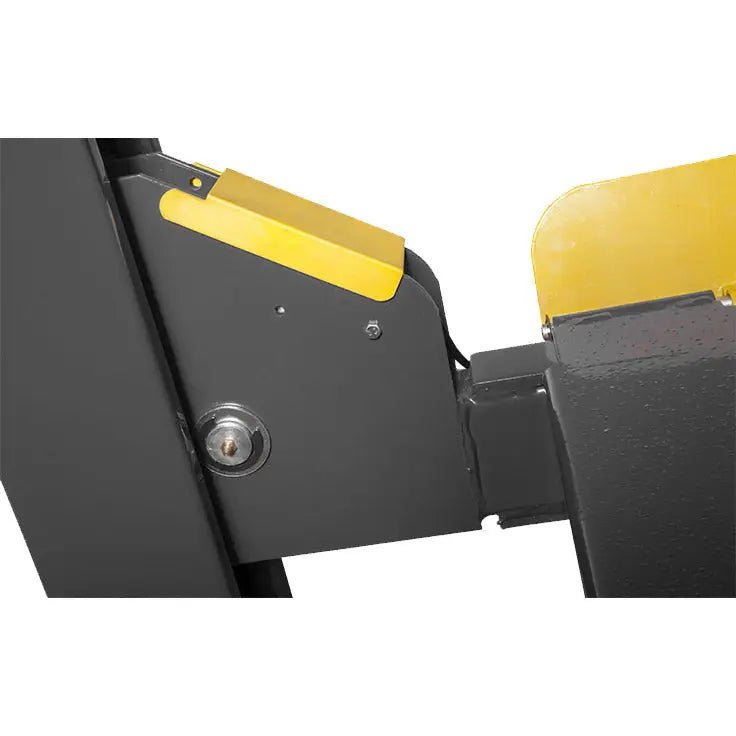

• Spring-loaded safety locks and secondary lock system

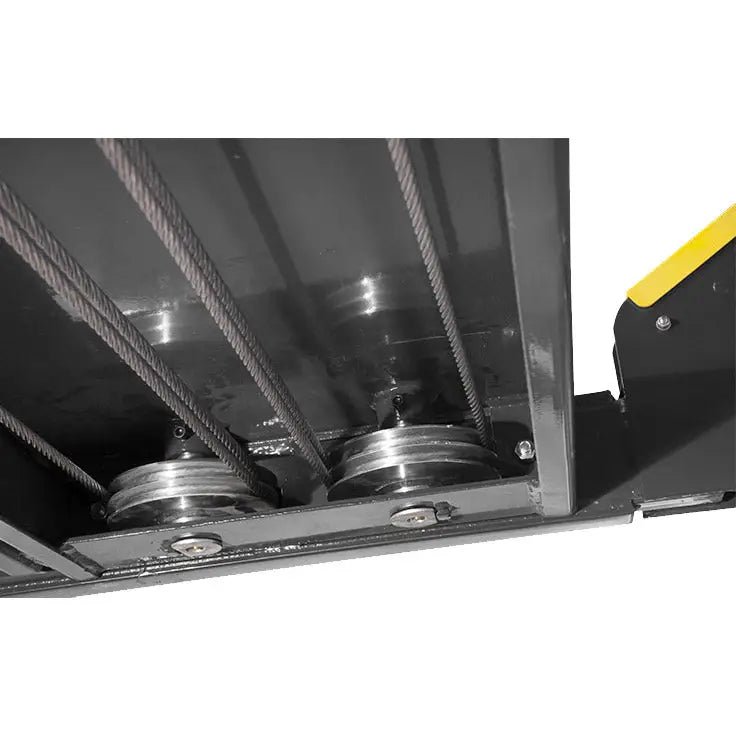

• Fully enclosed cables, airlines, safety latches, and sheaves
• Multiple adjustable height locking positions

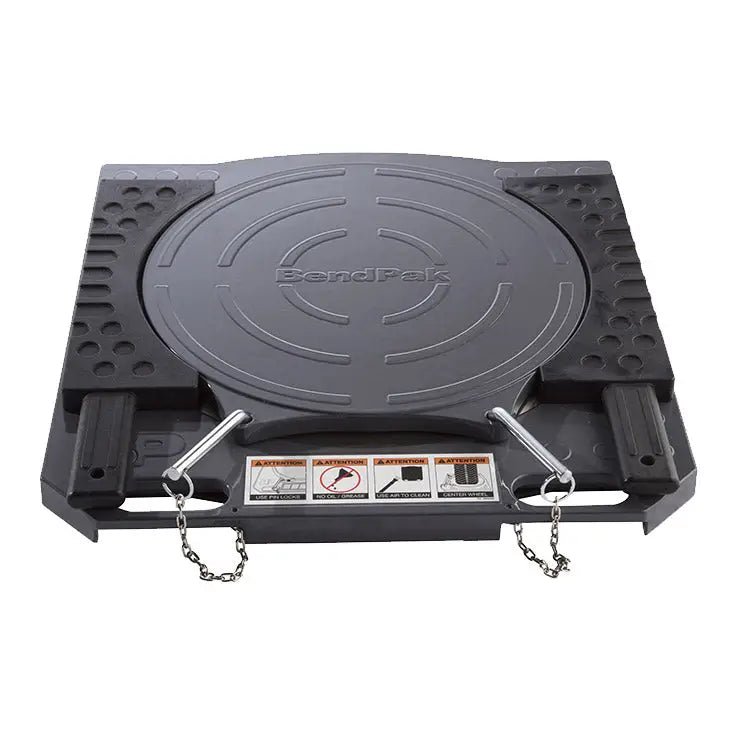

• Includes a turn plate and slip plate

Specifications

• Maximum Rise: 70 in
• Maximum Lifting Height: 76.5 in
• Overall Width: 127 in
• Overall Length: 224 in
• Runway Width: 19 in
• Runway Length: 188 in
• Maximum Two-Wheel Alignment: 160 in
• Four-Wheel Alignment Range: 71–145 in

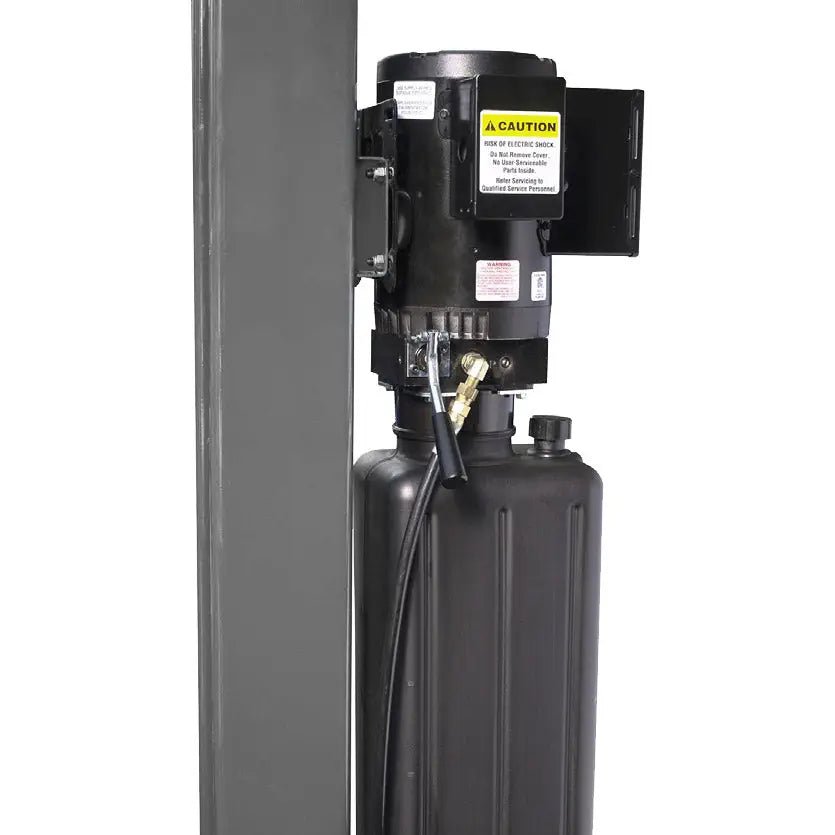

• Motor: 220 V, 60 Hz, single phase
• Time to Full Rise: 60 seconds
