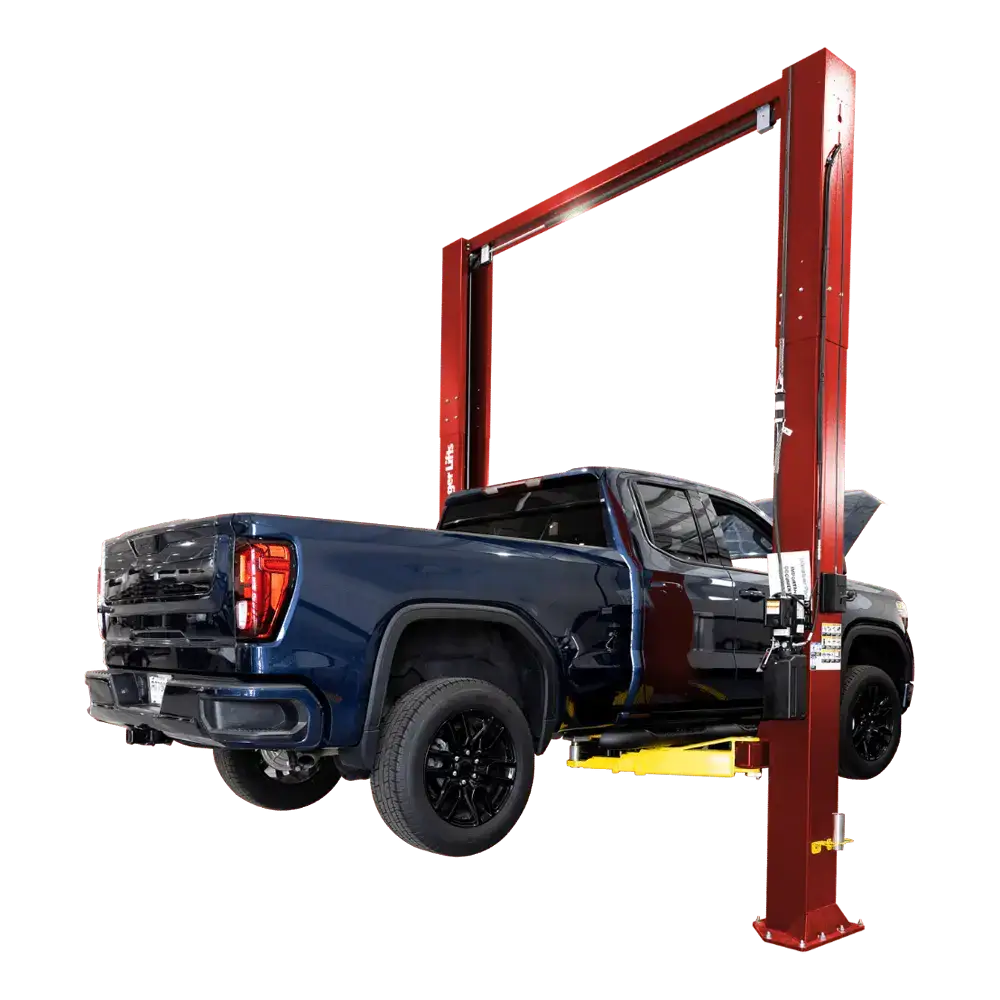

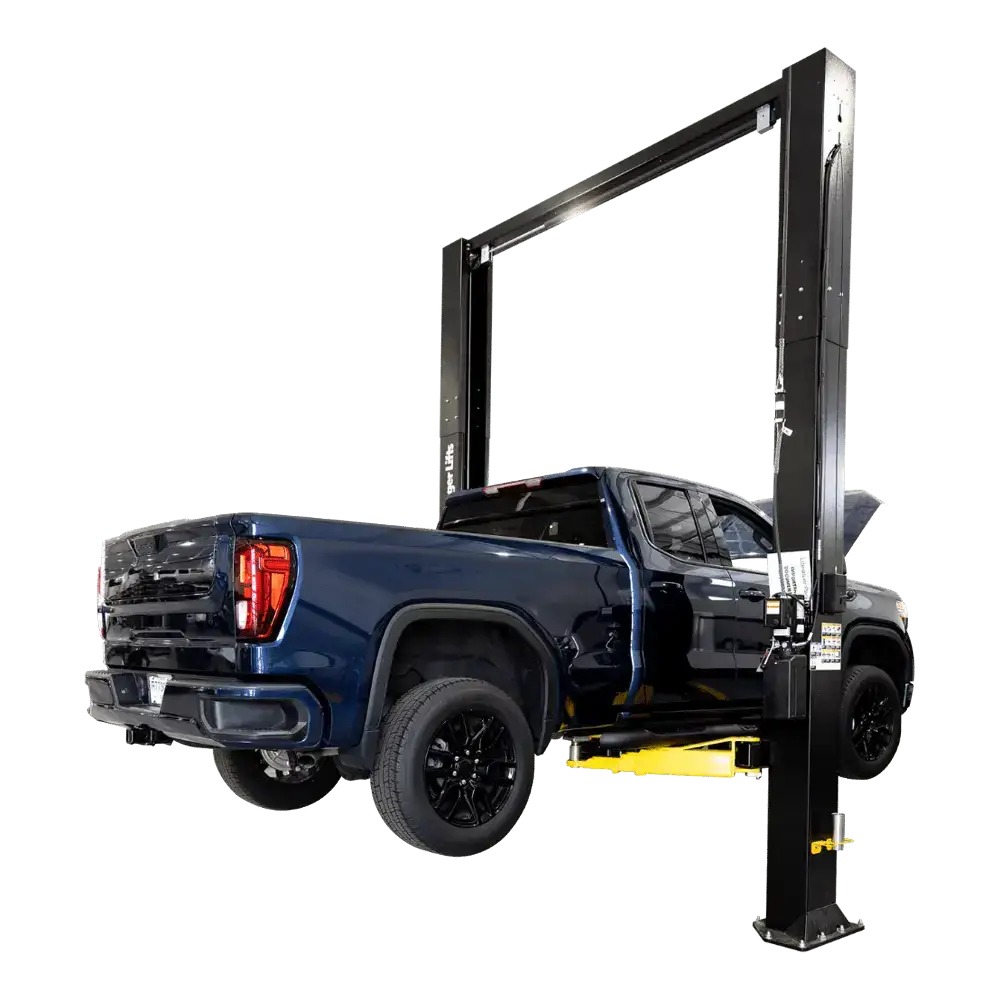

Challenger CL12A Symetric 2-Post Lift w/ Width Adjustment (12,000 lbs)
Challenger CL12A Symetric 2-Post Lift w/ Width Adjustment (12,000 lbs) - Image 2
Challenger CL12A Symetric 2-Post Lift w/ Width Adjustment (12,000 lbs) - Image 3
Challenger CL12A Symetric 2-Post Lift w/ Width Adjustment (12,000 lbs) - Image 4
Challenger CL12A Symetric 2-Post Lift w/ Width Adjustment (12,000 lbs) - Image 5
Challenger CL12A Symetric 2-Post Lift w/ Width Adjustment (12,000 lbs) - Image 6
Challenger CL12A Symetric 2-Post Lift w/ Width Adjustment (12,000 lbs) - Image 7
Challenger CL12A Symetric 2-Post Lift w/ Width Adjustment (12,000 lbs) - Image 8
Challenger CL12A Symetric 2-Post Lift w/ Width Adjustment (12,000 lbs) - Image 9

Challenger CL12A Symetric 2-Post Lift w/ Width Adjustment (12,000 lbs)

Price range: $11,166.00 through $11,612.00

Challenger CL12A Symetric 2-Post Lift w/ Width Adjustment (12,000 lbs)

Model, color
Choose an option / Choose an option
Challenger CL12A Symetric 2-Post Lift w/ Width Adjustment (12,000 lbs)
Add to cart
Buy Now
SKU: N/A Category: Tags:

The Challenger CL12A 2-Post Lift combines 12,000 lbs. of lifting capacity with adjustable width, 3-stage arms, and premium telescoping footpads. Built for cars, trucks, vans, SUVs, and EVs, this ALI® Certified lift delivers unmatched flexibility, safety, and performance in a single service bay.

Features:

  • 12,000 lb. Capacity – Handles a wide range of passenger vehicles, trucks, SUVs, and EVs
  • Adjustable Width – +6-inch and +12-inch installation options for shop flexibility
  • Optional Height Extensions – +1ft and +2ft column extensions available

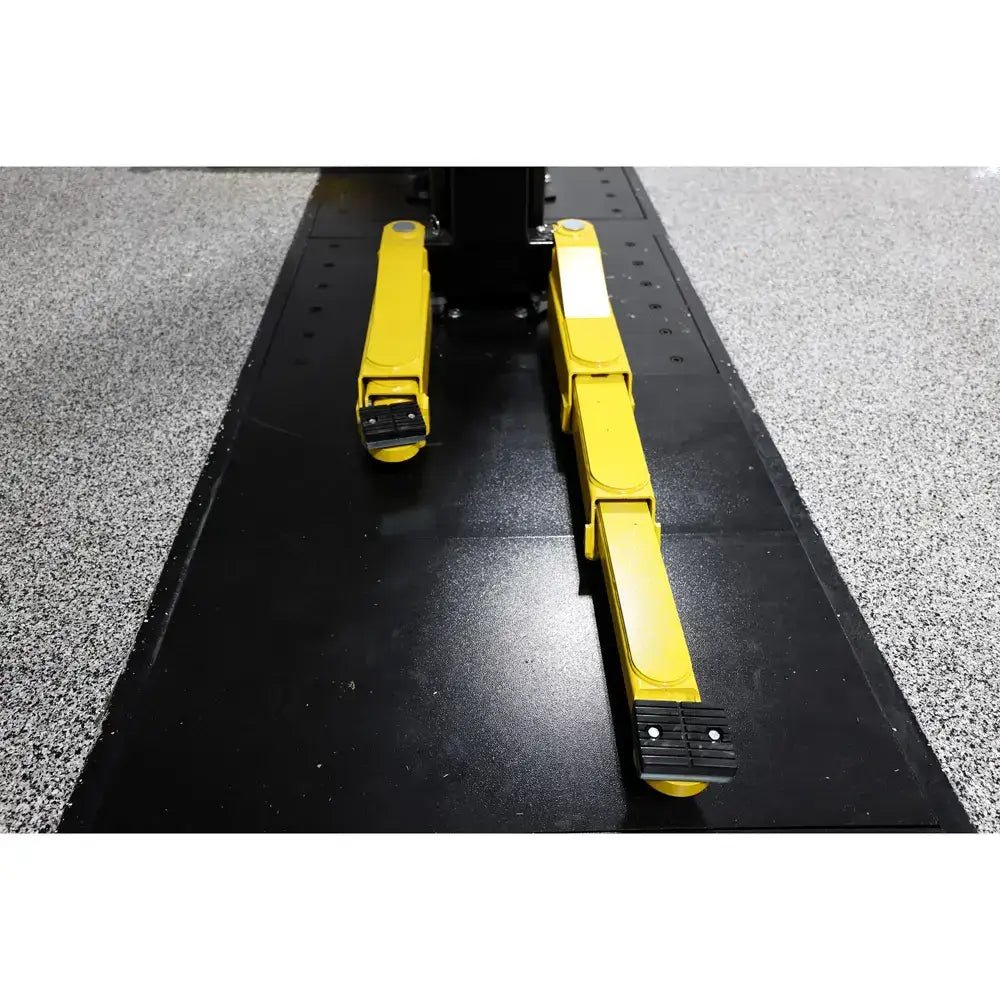

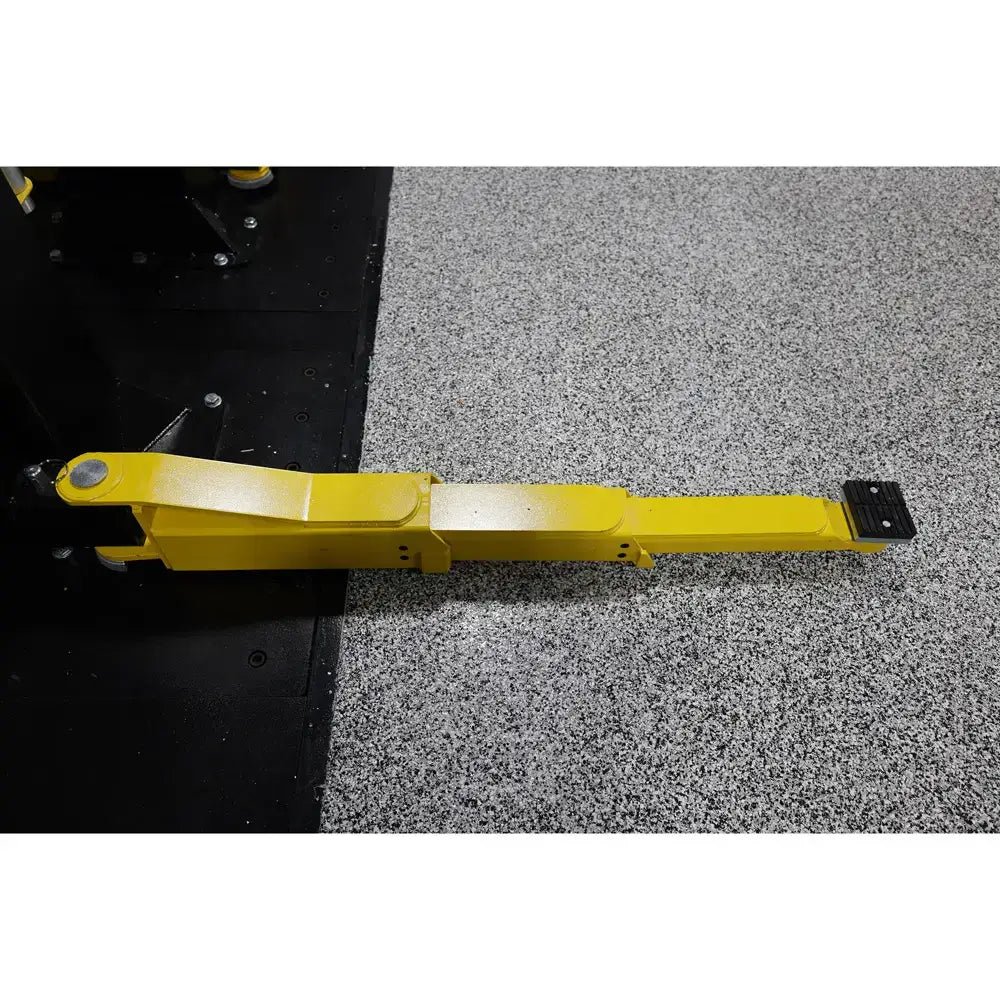

  • 3-Stage Front and Rear Arms – Maximum reach for lifting a variety of vehicles
  • Premium Telescoping Footpads – Easy and precise vehicle positioning

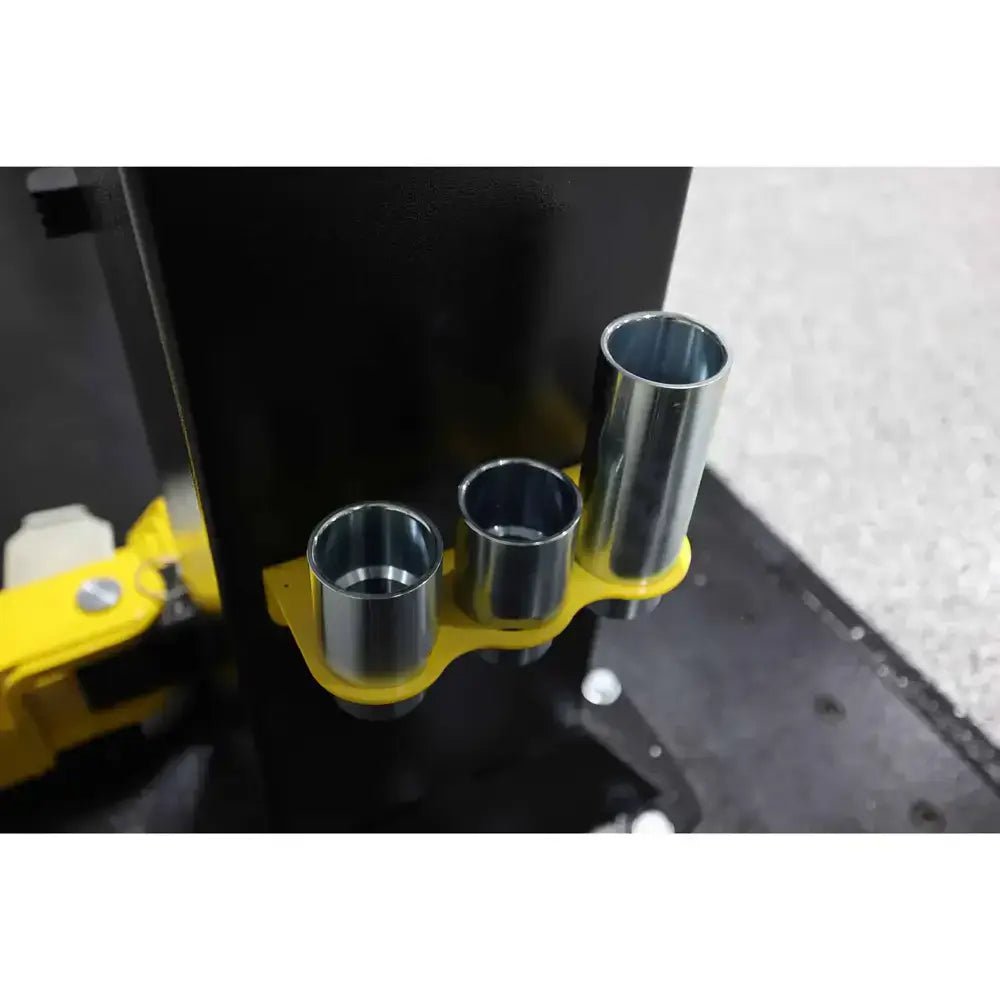

  • Stack Adapter Kit Included (P/N 10315) – Expands lifting point compatibility
  • ALI® Certified – Meets industry’s strictest safety and performance standards

Specs:

Lifting Capacity: 12,000 lbs.
Lifting Configuration: Symmetric
Arms: 3-stage front/3-stage rear
Rise Height (Screw Pads Highest Position): 78-3/4in
Adjustable Width Overall at Install: (-6in) 148in / (Max) 154in
Drive-Thru Clearance: (-6in) 109.5in / (Max) 115.5in
Arm Reach (Min.): 27.5in
Arm Reach (Max.): 59in
Screw Pad Height*: 5in – 6.625in
Inside Columns: (-6in) 120.5in / (Max) 126.5in
Speed of Rise (Approximate): 63 seconds
Motor: 2HP, 208-230V, 60Hz, 1Ph

CL12A
Overall Height / (-6in) (MAX): 158in – 164in / 13ft 2in or 13ft 8in
Floor to Overhead Switch: 152in – 158in
Ceiling Height Required (Min): 159in – 165in

CL12A-1
Overall Height / (-6in) (MAX): 170in – 176in / 14ft 2in or 14ft 8in
Floor to Overhead Switch: 164in – 170in
Ceiling Height Required (Min): 170in – 176in

CL12A-2
Overall Height / (-6in) (MAX): 182in – 188in / 15ft 2in or 15ft 8in
Floor to Overhead Switch: 176in – 182in
Ceiling Height Required (Min): 182in – 188in

Ref No.
CL12 (Older Model)

Similar Products
CL12A-LC (Low-ceiling Model)

Ref Name
Challenger ALI Certified 12K Lift
ALI Certified 12K Pro Lift
12K Safety Lift with Width Adj.

Application:

Auto Repair
Garage Service
Vehicle Maintenance
Car Workshop
Automotive Shop
