Challenger CL16 16K Heavy Duty Symmetric Two-Post Adjustable Lift, Standard

Challenger CL16 16,000 lb Standard Heavy-Duty Adjustable Two-Post Lift

The Challenger CL16 is a versatile 16,000 lb symmetric two-post lift designed for cargo vans, pickups, SUVs, and other commercial vehicles. Adjustable height, width, and depth configurations plus 3-stage arms provide flexible installation and improved vehicle access for automotive shops and fleet service centers.

Challenger CL16 Features

• 16,000 lb lifting capacity
• Adjustable height, width, and depth installation options
• 3-stage front and rear arms

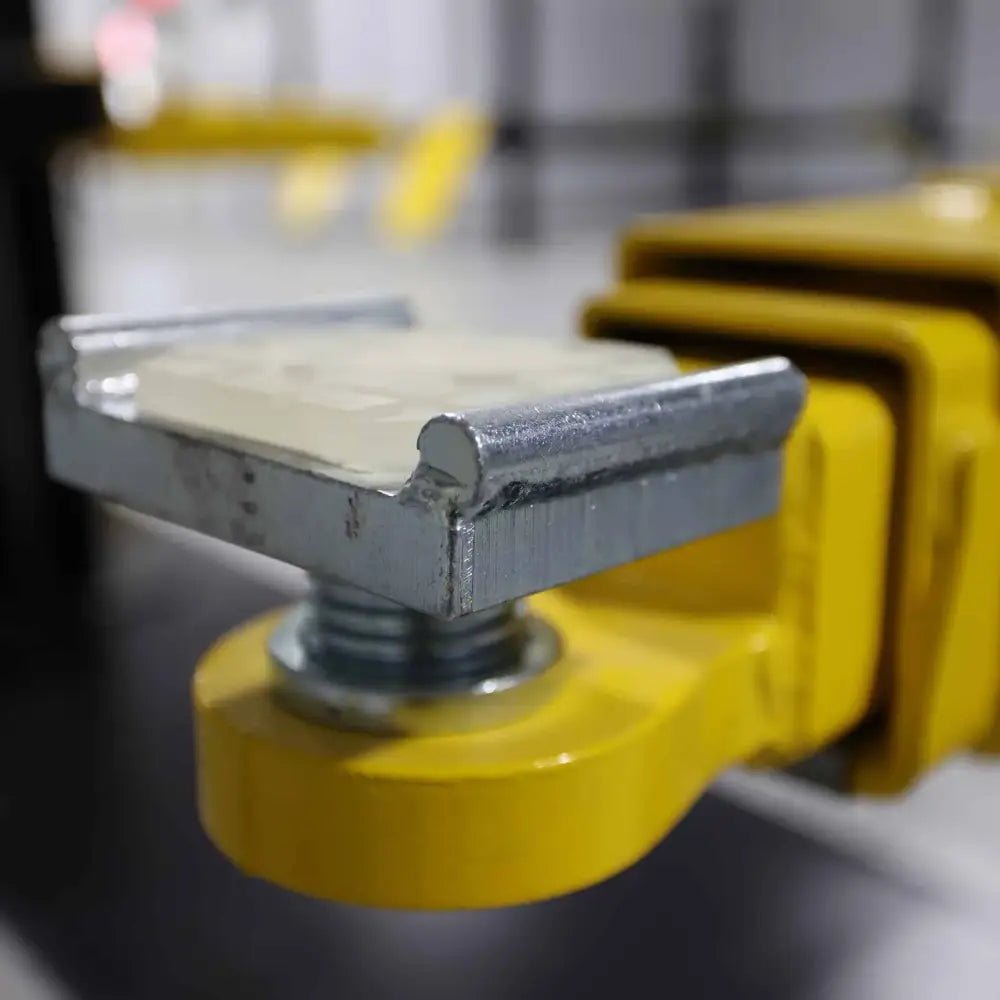

• Low-profile pickup pads
• Designed for cargo vans and commercial vehicles
• Built for fleet maintenance and demanding service environments
• ALI Certified

Challenger CL16 Specifications

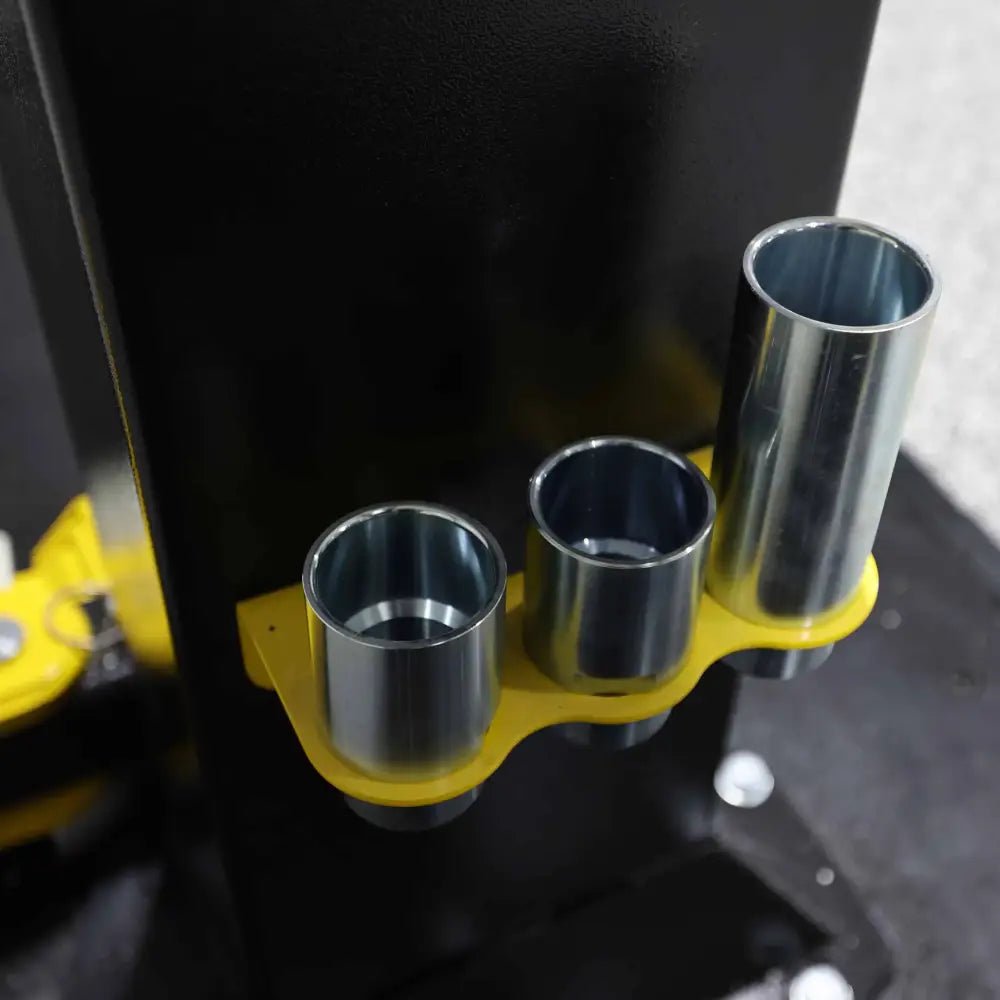

• Rise Height: 75.5 to 81.5 in with stack adapters
• Overall Height Options: 162, 168, or 174 in
• Overall Width Options: 154.75, 160.75, or 166.75 in
• Drive-Through Clearance: 104.25, 110.25, or 116.25 in
• Arm Reach: 36.625 to 75 in
• Between Columns: 120, 126, or 132 in
• Motor: 3 HP, 208-230V, single phase
• Air Supply: 90-120 PSI
• Rise Time: approximately 62 seconds
• Minimum Ceiling Height: 13 ft 8 in to 14 ft 8 in
