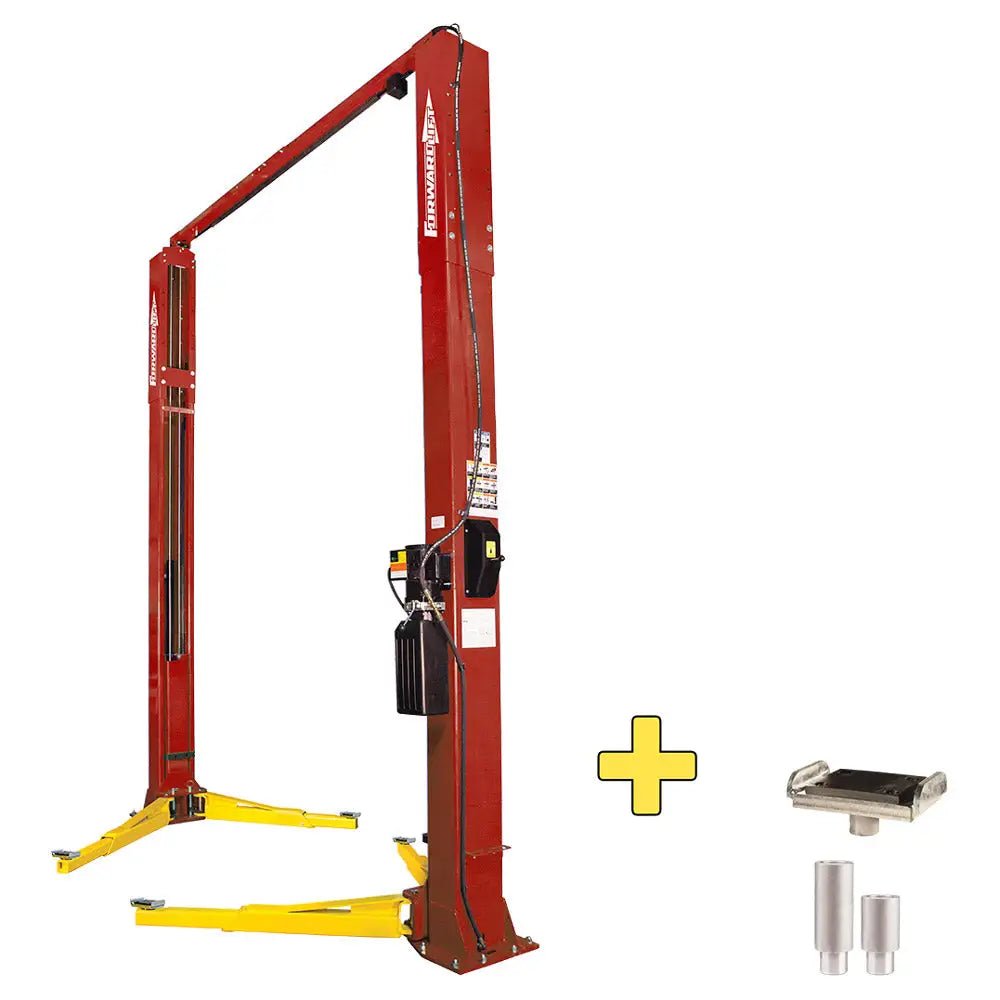

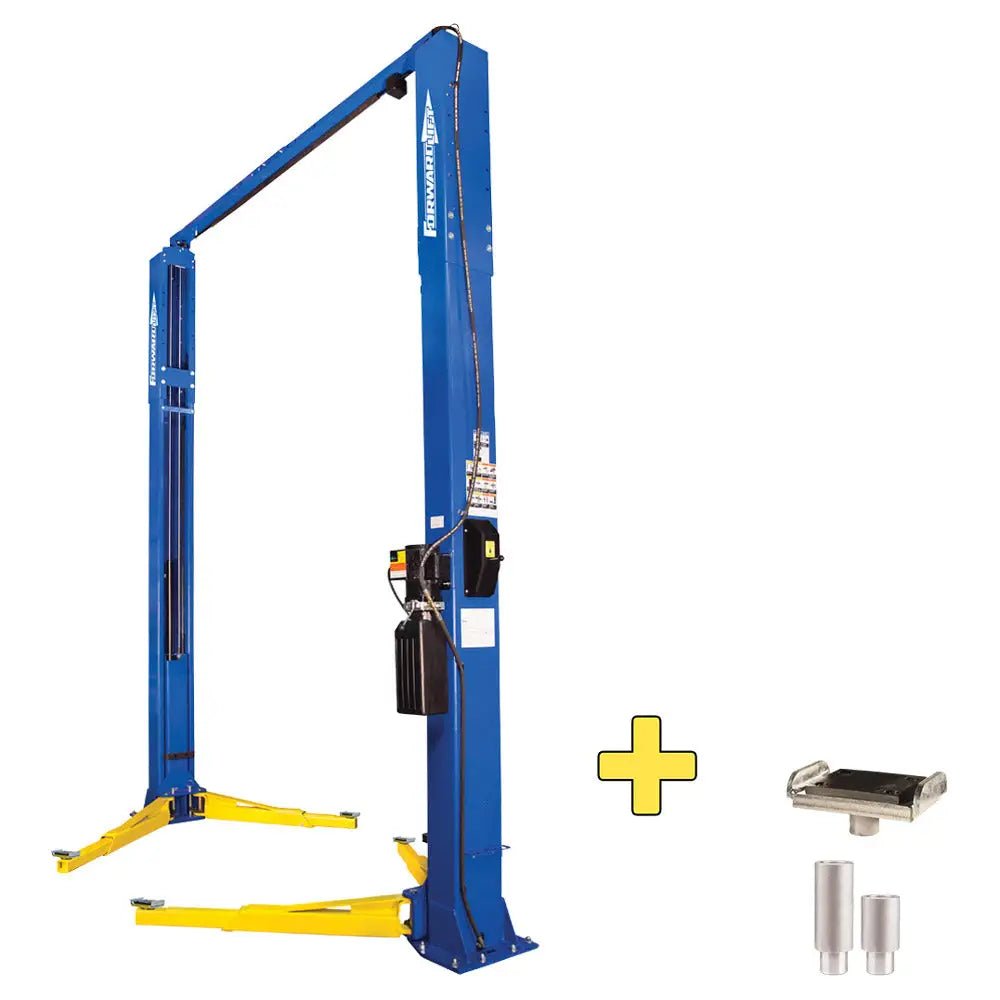

Forward Lift F12 12K Symmetric 2-Post Lift, ALI Certify, Light Duty
Forward Lift F12 12K Symmetric 2-Post Lift, ALI Certify, Light Duty - Image 2

Forward Lift F12 12K Symmetric 2-Post Lift, ALI Certify, Light Duty

Price range: $9,911.00 through $10,019.00

Forward Lift F12 12K Symmetric 2-Post Lift, ALI Certify, Light Duty

Overall Height, color
Choose an option / Choose an option
Forward Lift F12 12K Symmetric 2-Post Lift, ALI Certify, Light Duty
Add to cart
Buy Now
SKU: N/A Category: Tags:

Forward’s F12 two-post lift is gold certified with a 12,000-pound capacity for raising most passenger cars, trucks, and vans. Two heavy-duty push hydraulic cylinders are designed to increase lift performance and minimize downtime, and cylinders are located in each column concealed within the carriage itself. A durable powder coat finish provides exceptional protection from the wear a shop will see over the years. Forward’s spring-operated arm restraints are just one feature that keeps these heavy-duty lift arms constantly performing at their peak performance.

Features:

  • Hydraulic cylinders in each column
  • Full Stroke
  • The cylinder rod concealed inside the carriage
  • 72-1/2″ Rise | 77-1/2″ Rise (With 5″ adapter extensions)
  • 2 Stage Arm Design
  • Overhead cable equalization
  • Single Point lock release
  • Large rubber-padded swivel adapters with extra height extensions (3.5″ and 5″) are standard
  • Spring operated arm restraints, disengage at floor level
  • 2-stage front and rear arms
  • Durable powder coat finish
  • ALI Certified

Specs:

Capacity: 12,000 lbs.
Maximum Rise: 77-1/2in (With 5in adapter extension)
Overall Width:
– 140in (Standard)
– 146in
Drive Through Clearance:

– 108-3/4in (Standard)
– 102-3/4in
Front Arm Reach (Min./Max.): 35in/ 54in
Rear Arm Reach (Min./Max.): 35in/ 54in
Min./Max. Adapter Height:
– 4-3/4in w/ no adapter extension
– 9-3/4in w/ 5in adapter extension
Width Inside Column:
– 120-7/8in Adjustable
– 114-7/8in Standard
Voltage/Amps:
– 208/230, 12 amps
– 208/230, 16 amps
Motor/Phase**:
– 1ph*/2HP/50Hz
– 1ph*/2HP/60Hz
Ceiling Height Required: 168in (4267mm)

F12N300
Adjustable Overall Height Options: 166in (4216mm)
Overhead Switch Height Options: 160-1/8in (4067mm) Standard

F12N301
Adjustable Overall Height Options: 178in (4521mm) Max. Height
Overhead Switch Height Options: 172-1/8in (4524mm)

F12N302
Adjustable Overall Height Options: 154in (3912mm) (F12N302)
Overhead Switch Height Options: 148-1/8in (3762mm)

F12N303
Adjustable Overall Height Options: 143in (3632mm) (F12N303)
Overhead Switch Height Options: 137-1/8in (3483mm)

Application:

Vehicles Type
Cars
Trucks
Vans


Businesses Type
Independent repair shops
Car dealerships
body shops
Home enthusiasts
Heavy-duty truck facilities

Adapter Includes:

4 x Low-profile Drop-in Adapters
Adapter Extensions:
– 3.5in
– 5in

Additional Information

Overall Height

, , ,

color

,
