Rotary SPO16 CARGO Low Ceiling Symmetric 16K 2-Post Lift w/ Ext. Arm

Rotary SPO16 CARGO 16,000 lb Low-Ceiling Symmetric Two-Post Lift

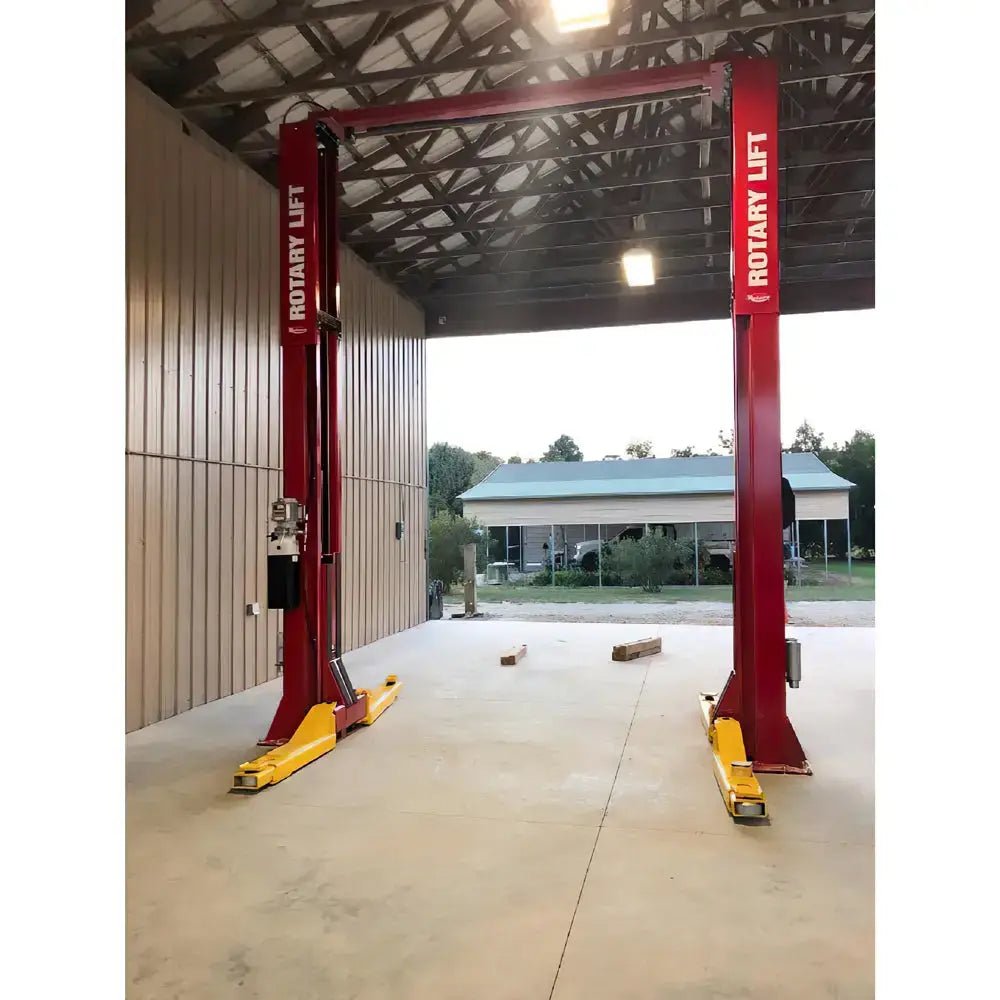

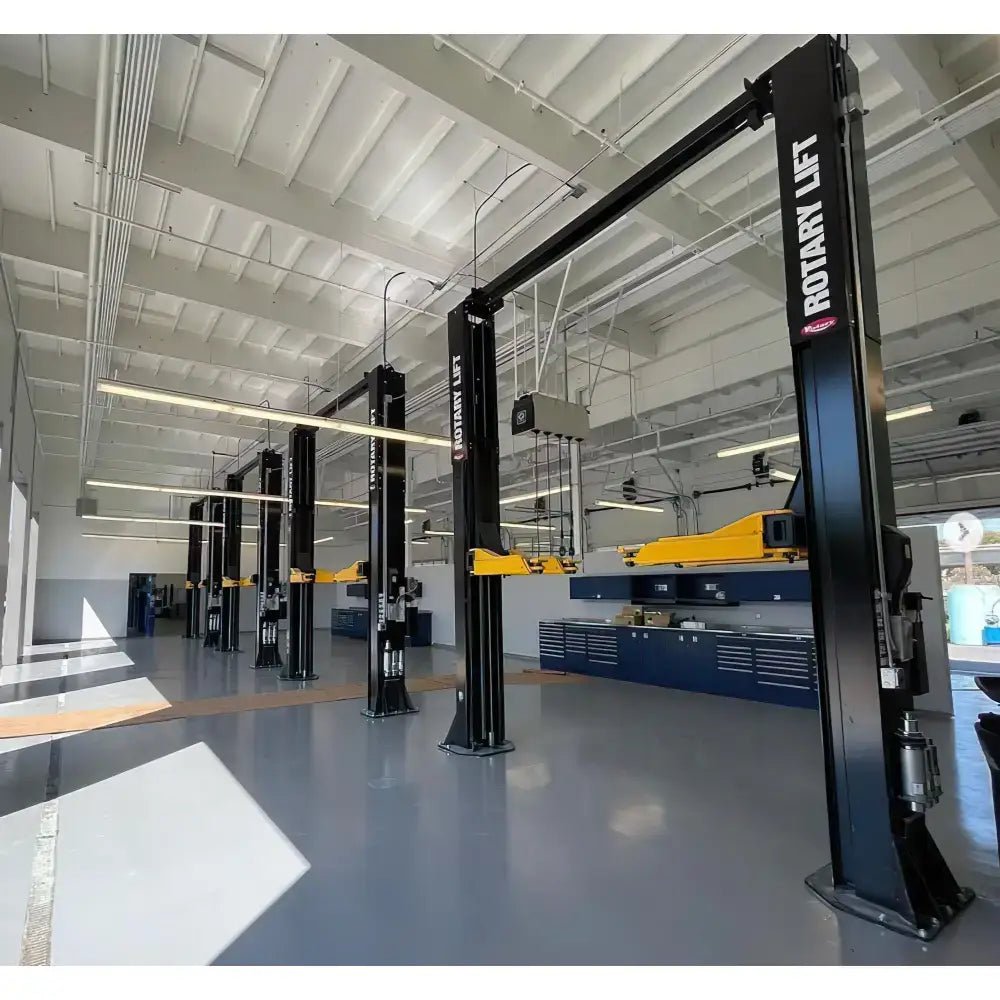

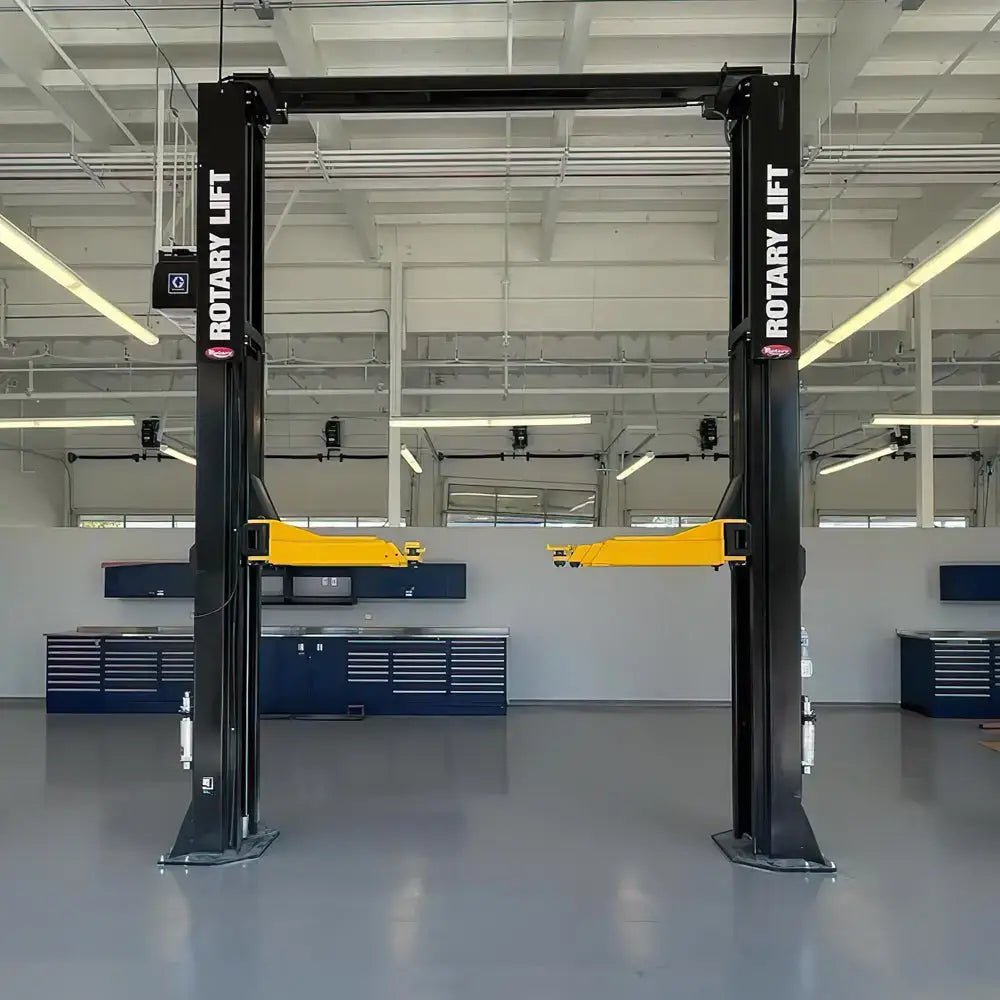

The Rotary SPO16 CARGO is a low-ceiling, ALI Gold Certified 16,000 lb symmetric two-post lift designed for longer vans and Class 1 through Class 5 vehicles. Its 3-stage arms, adjustable width, air-operated lock release, and low-height configuration provide dependable lifting in workshops with limited overhead space.

Rotary SPO16 CARGO Features

• 16,000 lb lifting capacity
• Designed for low-ceiling shops and longer van wheelbases

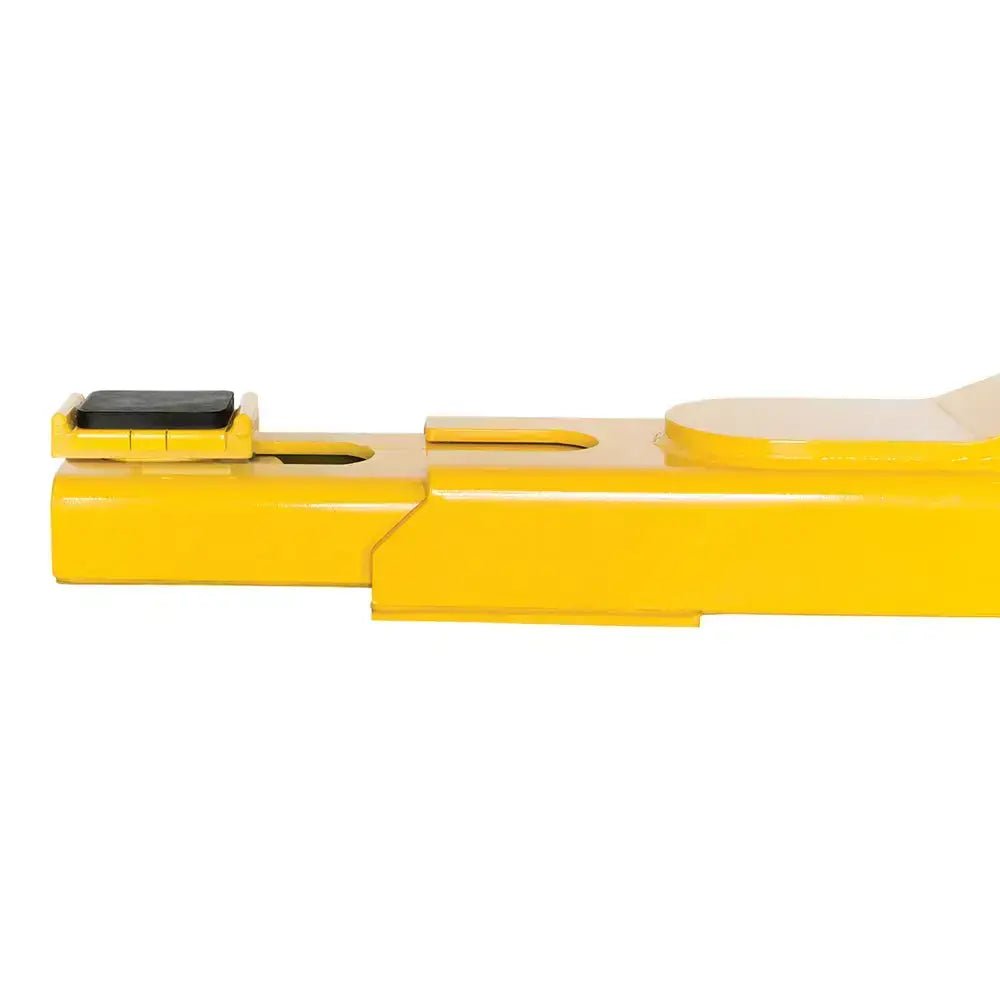

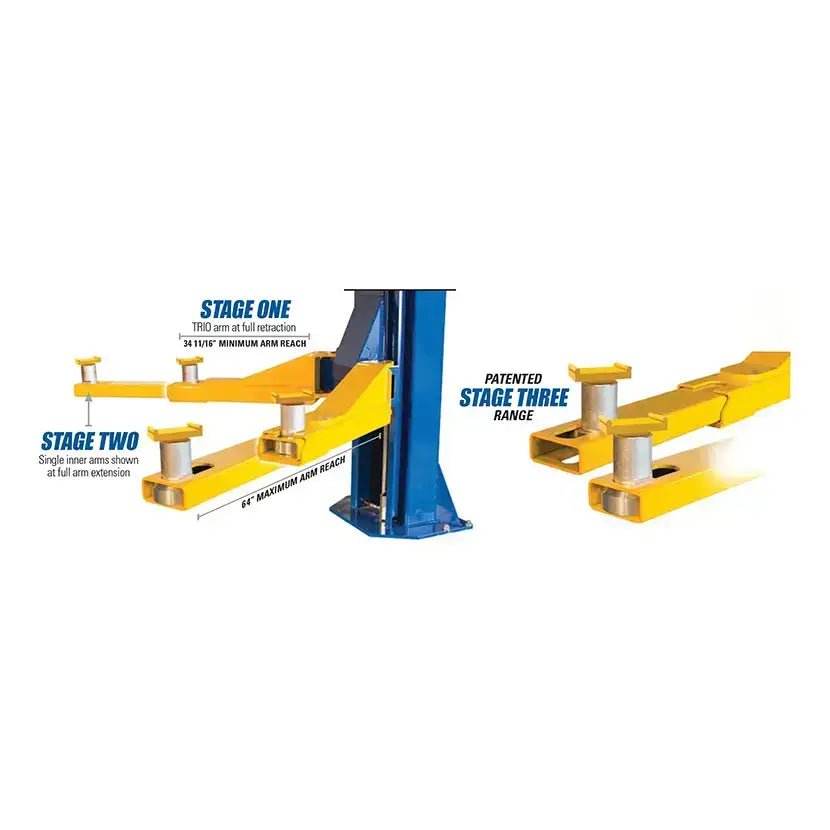

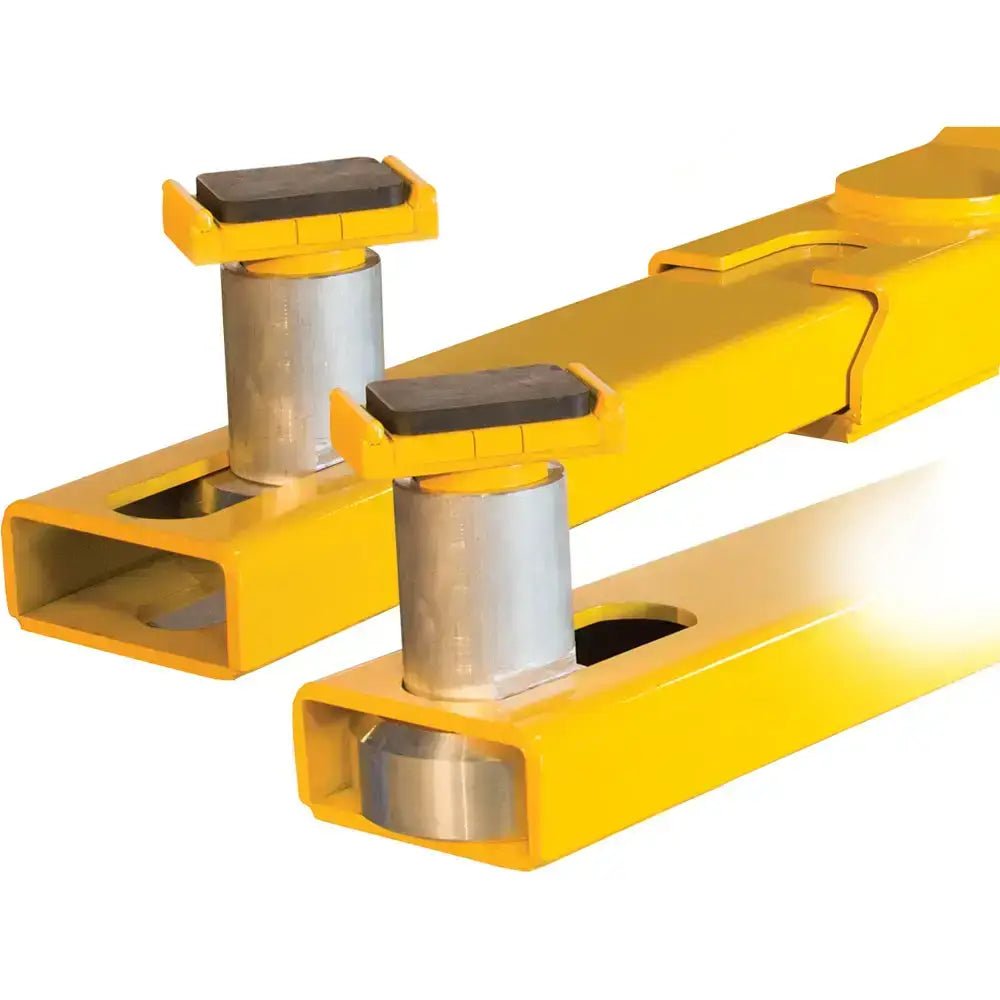

• 3-stage front and rear arms
• Screw-up frame cradles
• Air-operated lock release
• ALI Gold Certified
• Class 1 through Class 5 compatibility
• Adjustable width
• Double S column design
• Available in red or blue

Rotary SPO16 CARGO Specifications

• Rise Height: 80 in
• Height Configurations: 13 ft 6 in to 14 ft 6 in in 6 in increments
• Required Ceiling Height: 13 ft 8 in to 14 ft 8 in
• Overall Width: 13 ft 5 in
• Drive-Through Width: 111-11/32 in
• Inside Columns: 126-15/32 in
• Arm Reach: 36-13/16 to 74-13/16 in

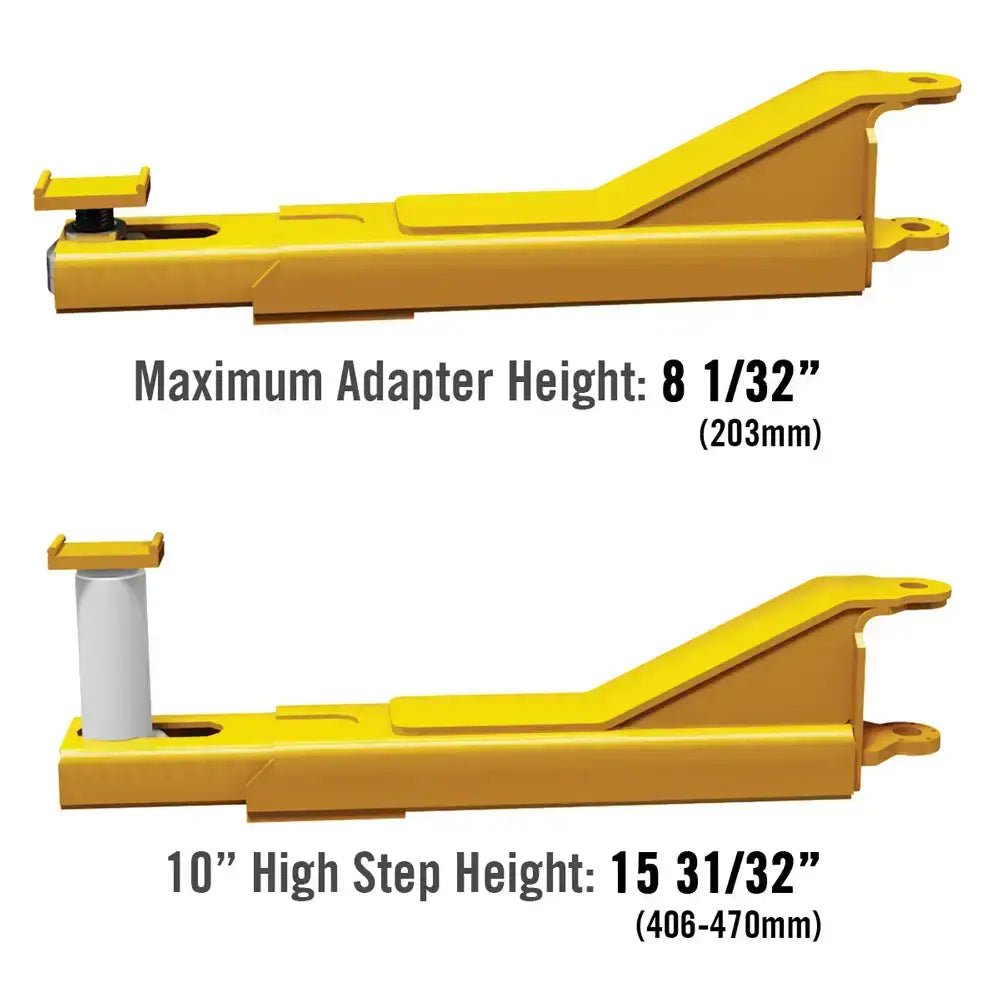

• Adapter Height: 5-31/32 to 8-1/32 in
• Motor: 2 HP, 208-230V
• Rise Time: approximately 81 seconds
• Minimum Bay Size: 15 x 30 ft
