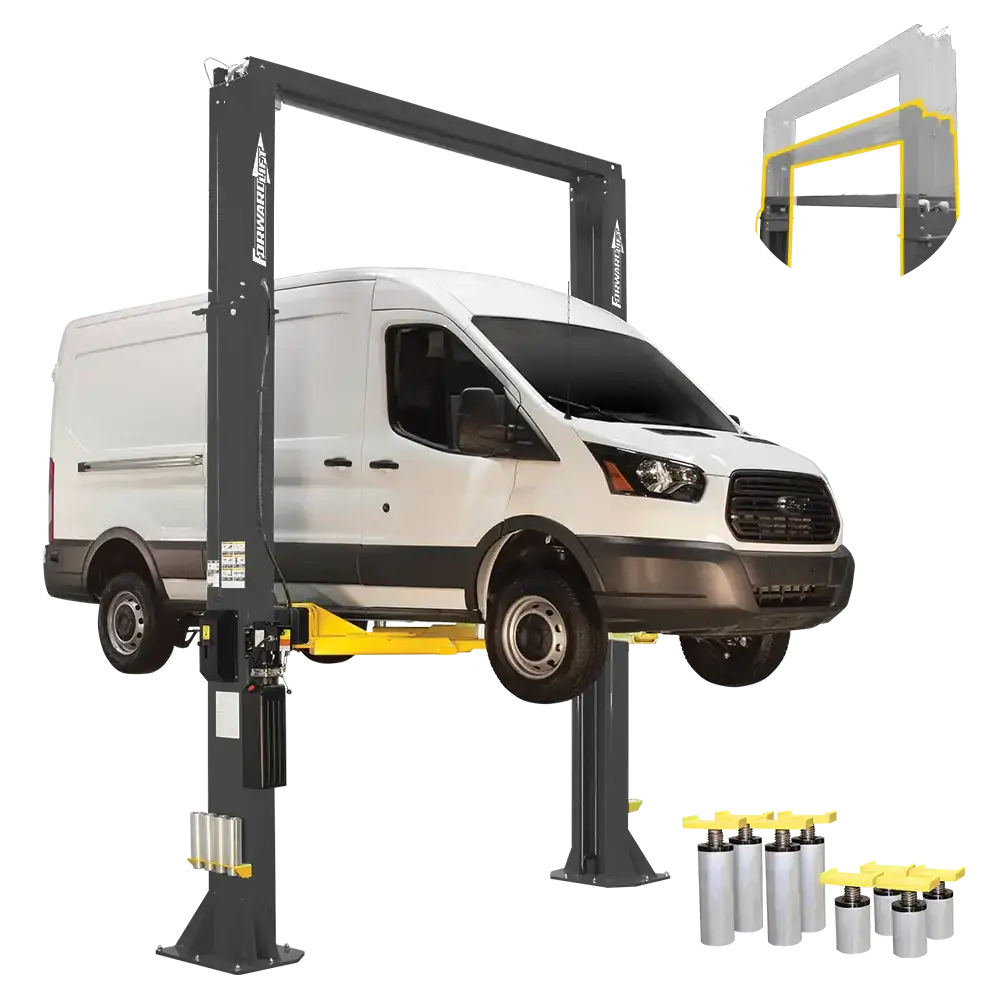

Forward DP15 15K Heavy-Duty Two-Post Lift
Forward DP15 15K Heavy-Duty Two-Post Lift - Image 2
Forward DP15 15K Heavy-Duty Two-Post Lift - Image 3
Forward DP15 15K Heavy-Duty Two-Post Lift - Image 4

Forward DP15 15K Heavy-Duty Two-Post Lift

Price range: $16,623.00 through $18,338.00

Forward DP15 15K Heavy-Duty Two-Post Lift

Extended Height
Choose an option
Forward DP15 15K Heavy-Duty Two-Post Lift
Add to cart
Buy Now
SKU: N/A Category: Tags:

The DP15 Heavy-Duty Two-Post Lift is perfect for your shop. With a capacity of 15,000 pounds, it can handle work trucks, vans, small buses, and everything else that comes through the door. The DP15 is constructed of high-strength heavy gauge steel columns and has eight aircraft-grade aluminum truck adapter extensions. Four 5″ and four 10″ adapters allow you to lift a wide range of vehicles. The arms are two-stage and can easily be extended and retracted while spotting a vehicle on the floor.

Features:

  • 15,000 lbs. capacity for raising most trucks and vans.
  • Features symmetrical column design
  • Direct-Pull Lifting – high efficiency, low maintenance technology
  • Closed-loop hydraulic system – protects against hydraulic contamination
  • Powder coat paint is more durable than conventional coatings
  • Third-party tested and certified by ALI
  • Padded shut-off bar
  • Low-profile arms and truck adapters
  • Single point release lock at the operations center

Low-Profile Arm Design

  • Arms feature a low, 5 1/2″ minimum adapter engagement height
  • Two-stage with heavy-duty reinforced gusseting
  • Easily extended and retracted / from 61″ to 38″.

Specs:

Arm Type: 2 Stage
Total Capacity: 15,000 lbs. (8164kg)
Rise*: 83-1/4in (2114mm)
Overall Floor Width: 154-3/8in (3921mm)
Inside Column Width: 119-5/8in (3038mm)
Drive Through: 108-1/4in (2749mm)
Arm Reach: 38in (965mm) 61in (1549mm)
Minimum Adapter Height: 5-1/2in (139mm)
Stackable Adapter Height (Low Extension): 10-1/2in (266mm)
Stackable Adapter Height (High Extension): 15-1/2in (393mm)
Voltage*: 208/230v, 20 amps
Amps: 20
Motor: 2 HP/1Ø
Color: Black
Estimate Shipping Weight: 3,698 lbs

DP15-155
Model: Low Ceiling
Column Extensions: No Extensions
Overall Height: 154-3/4in (3930mm)
Height to Shut-Off: 147-1/4in (3735mm)
Minimum Ceiling Height: 155-3/4in (3956mm)
Ref No: DP15N000, DP15N000BL, DP15N000RD

DP15-175
Model:  Standard
Column Extensions: Standard Height
Overall Height: 175in (4445mm)
Height to Shut-Off: 167-1/4in (4250mm)
Minimum Ceiling Height: 176in (4470mm)
Ref No: DP15N001, DP15N001BL, DP15N001RD

DP15-199
Model:  Extended
Column Extensions: Extended Height
Overall Height: 199in (5054mm)
Height to Shut-Off: 191-1/4in (4860mm)
Minimum Ceiling Height: 200in (5080mm)
Ref No: DP15N002, DP15N002BL, DP15N002RD

* Specifications are subject to change without notice or liability. *Maximum lifting height within 10in adapters
* 1Ø, 3Ø, and 3Ø 600V available via special order – restrictions apply

Includes:

Low-Profile Threaded Adapter Pads
4 x 5in Adapter Extensions
4 x 10in Adapter Extensions

Additional Information

Extended Height

, ,
